Wolfspeed provides a PCB layout guide and thermal design recommendations in their application notes and design resources. It's essential to follow these guidelines to ensure proper heat dissipation, minimize parasitic inductance, and optimize switching performance.
When selecting a gate driver, consider the MOSFET's gate charge, threshold voltage, and switching frequency. Wolfspeed recommends using a gate driver with a high current capability (>1A) and a voltage rating that matches the MOSFET's gate-source voltage. Additionally, ensure the gate driver is compatible with the MOSFET's input capacitance and can provide a fast rise and fall time.
The high dv/dt rating of the C3M0045065J1 requires careful system design to prevent voltage overshoots, ringing, and electromagnetic interference (EMI). Ensure proper layout, use of snubbers or RC filters, and consider the impact on other system components, such as the gate driver, DC-DC converter, and load.
To ensure reliable operation, follow Wolfspeed's recommended operating conditions, including voltage, current, and temperature ratings. Implement proper thermal management, use a suitable gate driver, and ensure the MOSFET is operated within its safe operating area (SOA). Additionally, consider implementing fault detection and protection mechanisms, such as overcurrent and overtemperature protection.
SiC MOSFETs like the C3M0045065J1 offer faster switching speeds, lower losses, and higher efficiency compared to Si IGBTs. However, SiC MOSFETs typically have a higher cost, lower current ratings, and may require more complex gate drive circuits. Evaluate your specific application requirements and weigh the benefits of each technology to make an informed decision.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C3M0045065J1 Overview

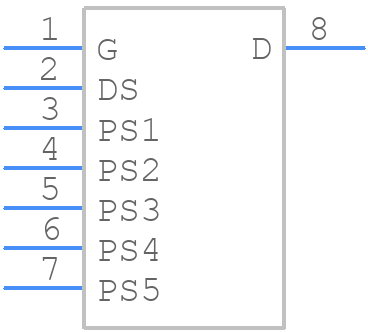

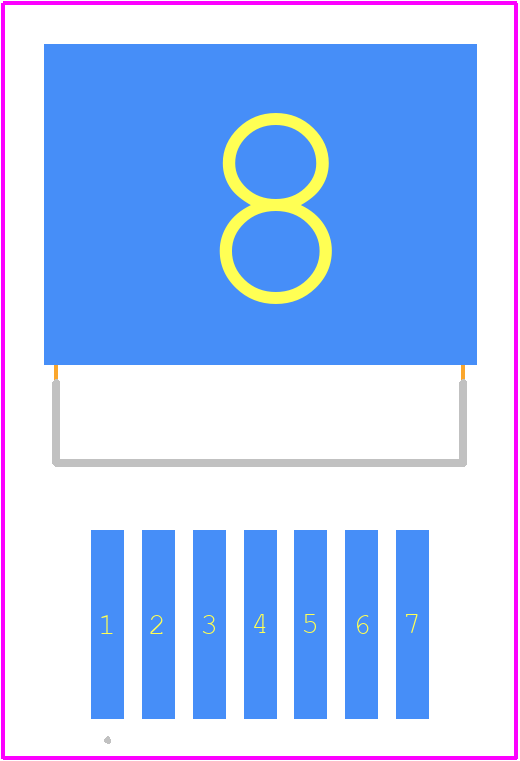

Use the download button to access the C3M0045065J1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C3M00,
or try a keyword search, such as Power Field-Effect Transistors
