A symmetrical layout with thermal vias and a large copper area for heat dissipation is recommended. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in Wolfspeed's application notes.
In addition to following the recommended operating temperature range, ensure proper heat sinking, and consider using a thermal interface material (TIM) to reduce thermal resistance. Also, derate the device's power handling capability according to the temperature derating curve provided in the datasheet.
Wolfspeed recommends following standard ESD protection procedures, such as using wrist straps, anti-static bags, and ESD-safe workstations. The device is sensitive to ESD, so proper handling and assembly techniques are crucial to prevent damage.
Yes, the C3M0120065J is suitable for high-frequency switching applications up to 1 MHz. However, ensure that the device is properly snubbed to prevent ringing and oscillations, and follow Wolfspeed's guidelines for high-frequency operation.
Choose a gate driver that can provide a sufficient voltage swing (e.g., 10-15 V) and current capability (e.g., 1-2 A) to ensure fast switching times and low losses. Consider factors like rise and fall times, propagation delay, and output impedance when selecting a gate driver.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C3M0120065J Overview

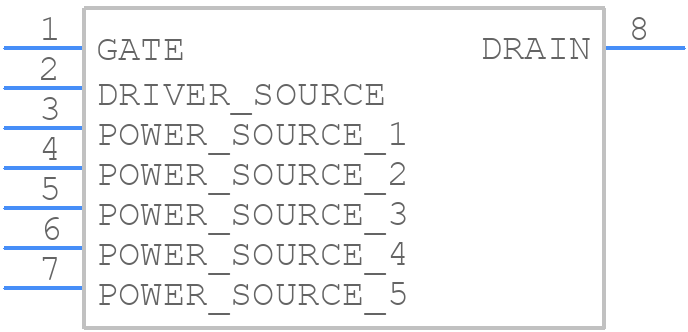

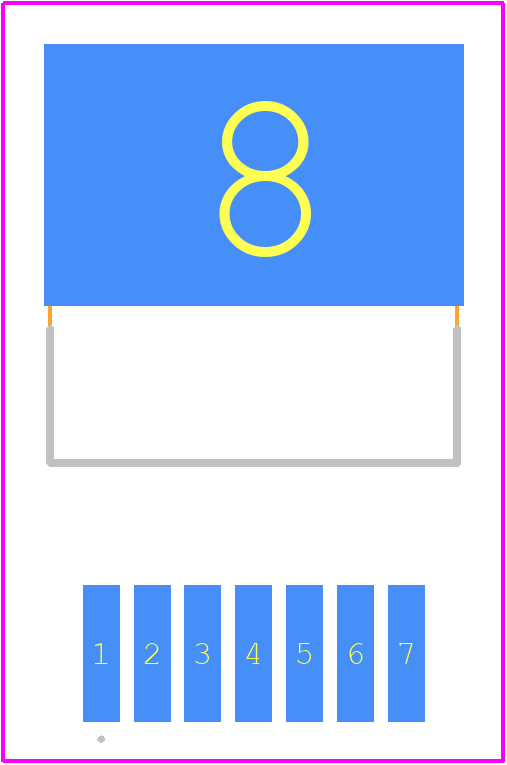

Use the download button to access the C3M0120065J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C3M01,
or try a keyword search, such as Power Field-Effect Transistors
