C3M0120090J - Wolfspeed

Description: 900 V, 120 mΩ, TO-263-7 package, Industrial qualified, Discrete SiC MOSFET

Download C3M0120090J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

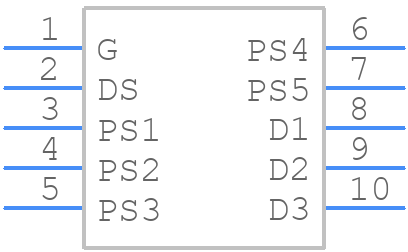

C3M0120090J - Wolfspeed - PCB symbol
click to zoom
PCB Footprints

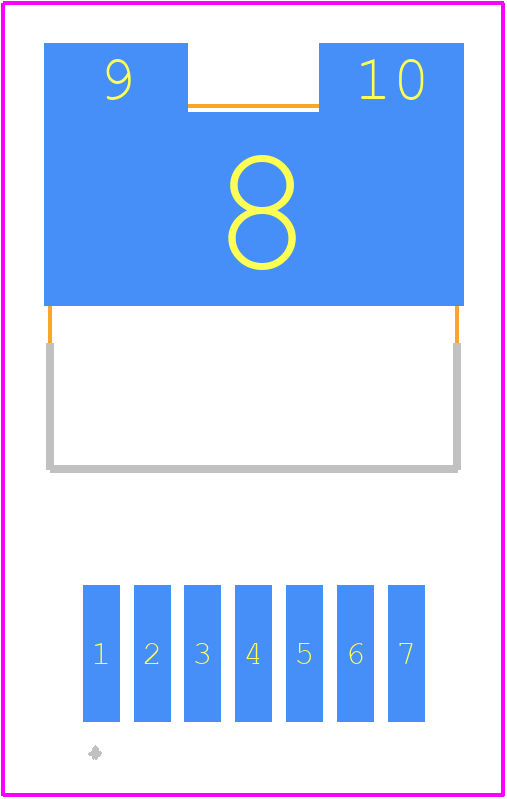

C3M0120090J - Wolfspeed PCB footprint - Other - Other - TO- 263- 7
click to zoom
3D Models
C3M0120090J - Wolfspeed - 3D model - Other - TO- 263- 7
click to zoom

C3M0120090J Details

  • Manufacturer Part Number:

    C3M0120090J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Wolfspeed

  • YTEOL:

    0

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    900 V

  • Drain Current-Max (ID):

    22 A

  • Drain-source On Resistance-Max:

    0.155 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    3 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    83 W

  • Pulsed Drain Current-Max (IDM):

    50 A

  • Reference Standard:

    IEC-60747-8-4

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

C3M0120090J Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the C3M0120090J is 150°C, but it's recommended to operate it at a maximum of 125°C for optimal performance and reliability.
  • To ensure proper cooling, it's recommended to use a heat sink with a thermal resistance of 1°C/W or lower, and to apply a thin layer of thermal interface material (TIM) between the device and the heat sink.
  • The recommended gate drive voltage for the C3M0120090J is between 15V and 20V, with a maximum voltage of 25V. However, it's recommended to consult the datasheet and application notes for specific gate drive requirements.
  • Yes, the C3M0120090J is suitable for high-frequency applications up to 100 kHz. However, it's recommended to consult the datasheet and application notes for specific guidance on high-frequency operation.
  • To protect the C3M0120090J from overvoltage and overcurrent, it's recommended to use a voltage clamp or a surge protector, and to implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
