C3M0160120J - Wolfspeed

Description: 1200 V, 160 mΩ, TO-263-7 package, Industrial qualified, Discrete SiC MOSFET

Download C3M0160120J Model

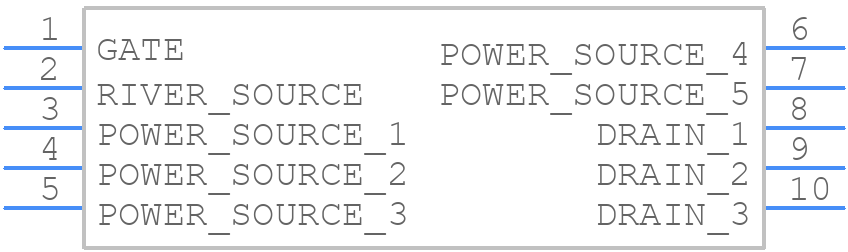

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

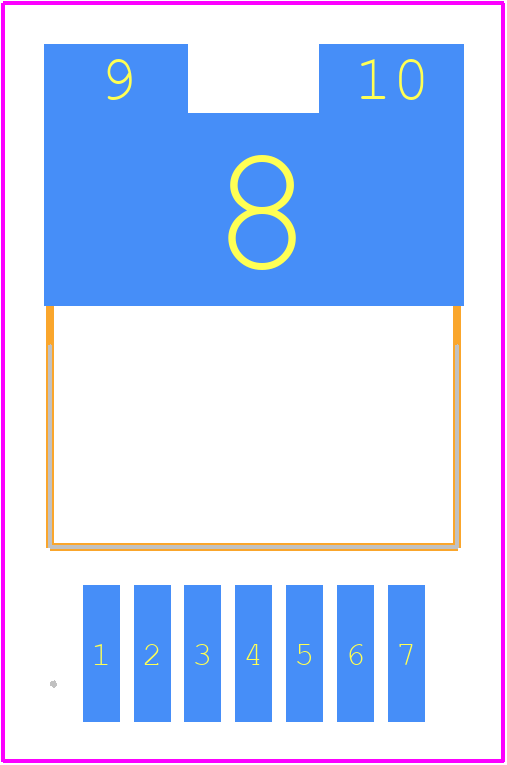

C3M0160120J - Wolfspeed PCB footprint - Other - Other - TO- 263- 7
click to zoom
3D Models
C3M0160120J - Wolfspeed  - 3D model - Other - TO- 263- 7
click to zoom

C3M0160120J Details

  • Manufacturer Part Number:

    C3M0160120J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Wolfspeed

  • YTEOL:

    6.7

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    17 A

  • Drain-source On Resistance-Max:

    0.208 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    3 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    90 W

  • Pulsed Drain Current-Max (IDM):

    34 A

  • Reference Standard:

    IEC-60747-8-4

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

C3M0160120J Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the C3M0160120J is 175°C, as specified in the datasheet. However, it's recommended to derate the device's power handling at higher temperatures to ensure reliable operation.
  • To ensure proper biasing, follow the recommended biasing circuit and voltage levels outlined in the datasheet. Additionally, consider using a gate driver with a high current capability to minimize voltage droop and ensure stable operation.
  • For optimal thermal performance, use a PCB with a thick copper layer (at least 2 oz) and a thermal via array under the device. Ensure good thermal conductivity between the device and the heat sink or thermal interface material. A well-designed thermal management strategy can help reduce junction temperature and increase device reliability.
  • Yes, the C3M0160120J can be used in a half-bridge configuration. However, ensure that the device is properly biased and that the gate driver is capable of handling the high current and voltage requirements. Additionally, consider using a bootstrap capacitor to ensure proper voltage supply to the high-side gate driver.
  • To minimize EMI and RFI, use a shielded enclosure and ensure good PCB layout practices, such as separating high-frequency and low-frequency circuits. Additionally, consider using EMI filters or common-mode chokes to reduce electromagnetic interference.
