C3M0350120J - Wolfspeed

Description: 1200 V, 350 mΩ, TO-263-7 package, Industrial qualified, Discrete SiC MOSFET

Download C3M0350120J Model

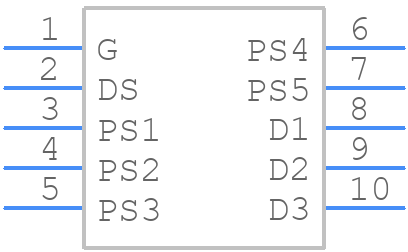

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

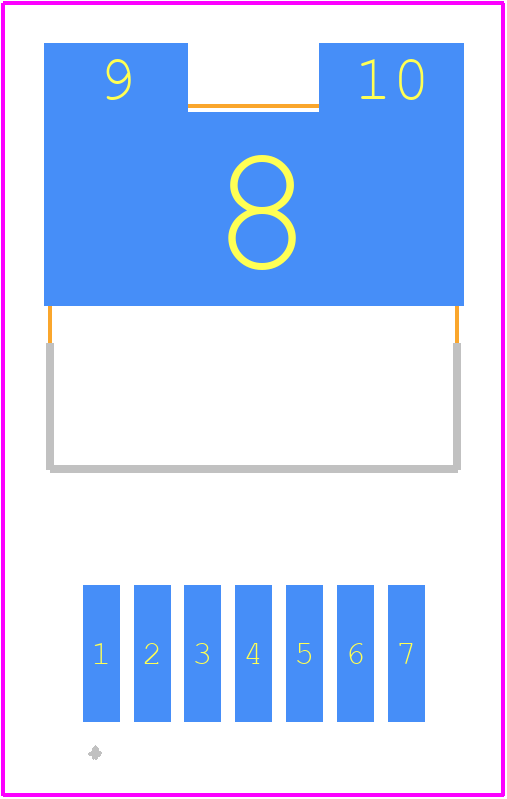

C3M0350120J - Wolfspeed PCB footprint - Other - Other - TO- 263- 7
click to zoom
3D Models
C3M0350120J - Wolfspeed  - 3D model - Other - TO- 263- 7
click to zoom

C3M0350120J Details

  • Manufacturer Part Number:

    C3M0350120J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Wolfspeed

  • YTEOL:

    6.7

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    7.2 A

  • Drain-source On Resistance-Max:

    0.455 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    3.4 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    40.8 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Reference Standard:

    IEC-60747-8-4

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

C3M0350120J Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the C3M0350120J is 175°C, as specified in the datasheet. However, it's recommended to derate the device's power handling at higher temperatures to ensure reliability and longevity.
  • To ensure proper biasing, follow the recommended biasing circuit and voltage levels outlined in the datasheet. Additionally, consider using a gate driver IC to provide a stable and controlled voltage supply to the gate terminal.
  • For optimal thermal performance, use a PCB layout that provides a low thermal resistance path from the device to a heat sink or thermal pad. Ensure good thermal conductivity by using a thick copper layer and thermal vias. A heat sink or thermal pad with a thermal conductivity of at least 1 W/m-K is recommended.
  • Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage from voltage and current surges. Use a voltage regulator or a TVS diode for OVP, and a current sense resistor or a current limiter for OCP.
  • Follow the recommended soldering profile and assembly guidelines outlined in the datasheet. Use a soldering iron with a temperature range of 250°C to 260°C, and ensure the device is handled by trained personnel to prevent mechanical stress and damage.
