Teledyne recommends following a 4-layer PCB stackup with a dedicated thermal layer, and using thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the thermal layer. Additionally, a heat sink or thermal interface material can be used to further improve thermal management.
Teledyne recommends following the recommended mounting and screw torque specifications, and using a ruggedized PCB design with a low center of gravity. Additionally, consider using vibration-dampening materials or potting compounds to reduce the impact of vibrations on the device.
While the C3P24D25C is designed to be radiation-hardened, it's not immune to all types of radiation. Teledyne recommends consulting the radiation hardness assurance report (RHAR) for specific details on the device's tolerance to total ionizing dose (TID), single-event effects (SEE), and neutron-induced latchup. Custom radiation testing may be required for specific applications.
Yes, the C3P24D25C is designed to be compact, with a package size of 24-pin Ceramic Quad Flat Package (CQFP). However, Teledyne recommends verifying the device's thermal and power requirements to ensure reliable operation in space-constrained designs. Consider using thermal simulation tools and consulting with Teledyne's application engineers for guidance.
Teledyne recommends using a combination of tools, including logic analyzers, oscilloscopes, and debugging software. Consult the device's datasheet and application notes for specific troubleshooting guidelines. Additionally, Teledyne's application engineers and technical support team are available to provide assistance and guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C3P24D25C Overview

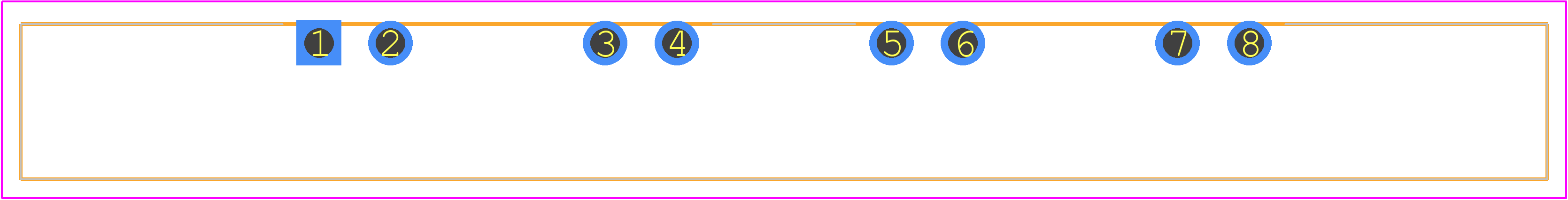

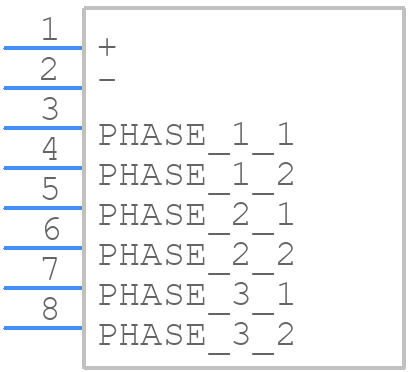

Use the download button to access the C3P24D25C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C3P24,
or try a keyword search, such as Solid State Relays
