C4532X7R1C106K230KM - TDK

Description: MULTILAYER CERAMIC CHIP CAPACITORS, 4532, Commercial grade, general (Up to 75V)

Download C4532X7R1C106K230KM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
C4532X7R1C106K230KM - TDK - PCB symbol
click to zoom

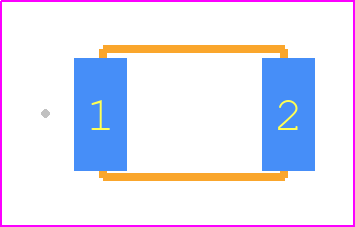

PCB Footprints
C4532X7R1C106K230KM - TDK PCB footprint - Other - Other - C4532_Commercial
click to zoom
3D Models
C4532X7R1C106K230KM - TDK - 3D model - Other - C4532_Commercial
click to zoom

C4532X7R1C106K230KM Details

  • Manufacturer Part Number:

    C4532X7R1C106K230KM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Capacitance:

    10 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2.3 mm

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 INCH

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    16 V

  • Size Code:

    1812

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Width:

    3.2 mm

C4532X7R1C106K230KM Frequently Asked Questions (FAQs)

  • The recommended land pattern for the C4532X7R1C106K230KM capacitor can be found in the TDK Corporation's Capacitor Land Pattern document, which provides guidelines for PCB layout and footprint design.
  • The Equivalent Series Resistance (ESR) of the C4532X7R1C106K230KM capacitor is an important parameter in high-frequency circuits. A lower ESR value can help reduce energy losses and improve the capacitor's overall performance. TDK Corporation provides ESR values in the datasheet, and engineers can use this information to optimize their circuit designs.
  • The C4532X7R1C106K230KM capacitor has a rated operating temperature range of -55°C to +125°C, making it suitable for use in high-temperature environments. However, engineers should consider the capacitor's derating characteristics and ensure that the component does not exceed its maximum operating temperature.
  • The C4532X7R1C106K230KM capacitor has an MSL rating of 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment before being soldered onto a PCB. Engineers should follow proper handling and storage procedures to prevent moisture-related damage.
  • The C4532X7R1C106K230KM capacitor meets the requirements for safety-critical applications, such as automotive and industrial systems. However, engineers should ensure that the component is used within its specified ratings and follows the relevant safety standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

C4532X7R1C106K230KM Overview

Use the download button to access the C4532X7R1C106K230KM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C4532, or try a keyword search, such as Ceramic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
