C4AUIBW5200M3HJ - Yageo Group

Description: C4AU, Film, Metallized Polypropylene, Automotive DC Link, 20 uF, 5%, 800 VDC, 105°C, -55°C, 1.5 GOhms, 30 V/us, 12.6 nH, 64.9 g, 42mm, 44mm, 24mm, Lead Spacing = 37.5mm, 44

Download C4AUIBW5200M3HJ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this C4AUIBW5200M3HJ model

Email notifications will be applied after download.

Send part feedback

Symbol

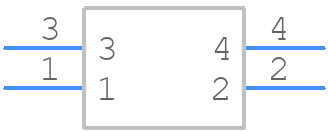

C4AUIBW5200M3HJ - Yageo Group - PCB symbol

PCB Footprints

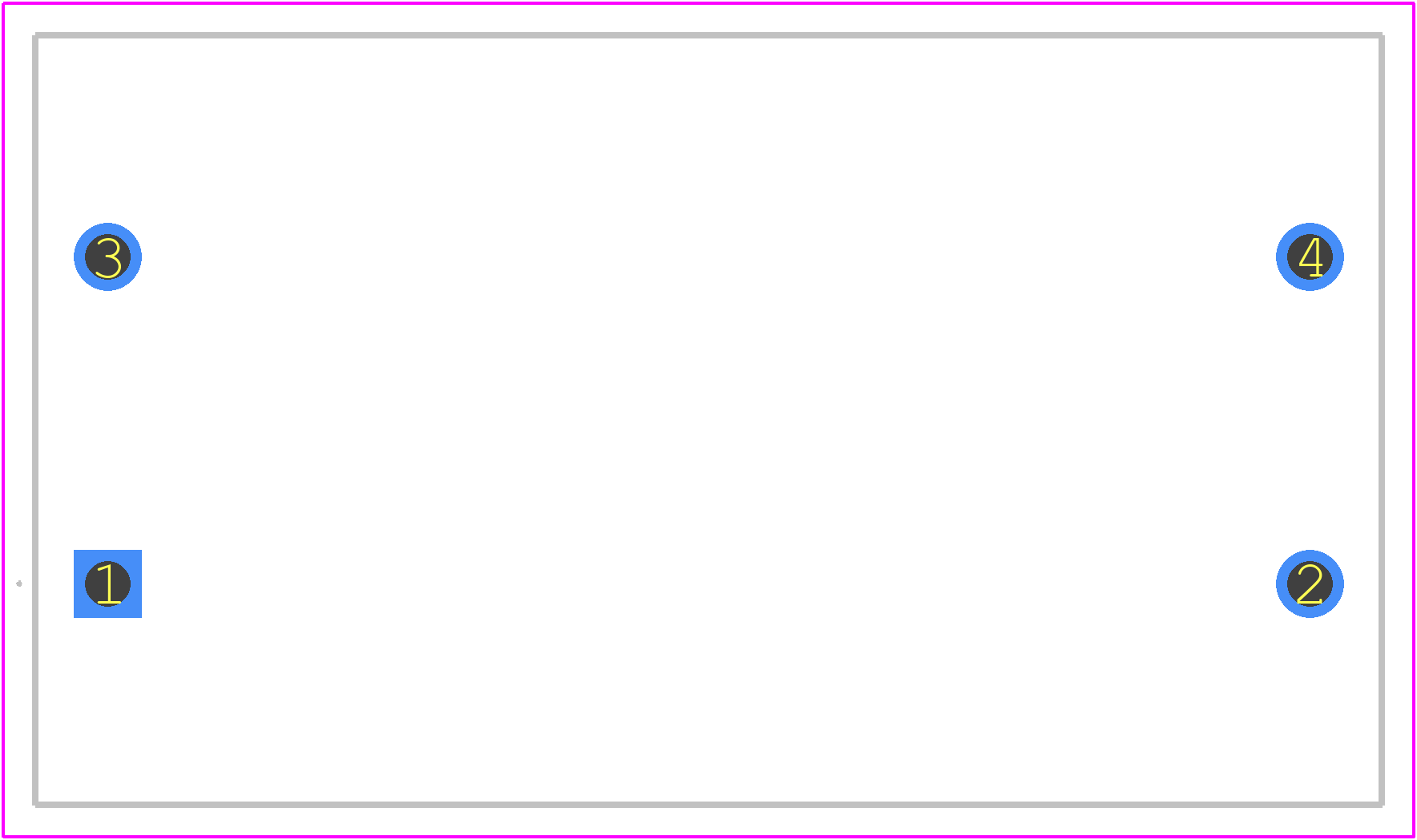

C4AUIBW5200M3HJ - Yageo Group PCB footprint - Other - Other - 42x24x44mm

3D Models

C4AUIBW5200M3HJ - Yageo Group - 3D model - Other - 42x24x44mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for C4AUIBW5200M3HJ
Part Number C4AUIBW5200M3HJ
Manufacturer Yageo Group
Pin Count 4
Part Category Capacitor
Package Category Other
Footprint Name Other - 42x24x44mm
Released Date Apr 22, 2022
Last Modified Date Feb 23, 2026 9:52 AM UTC
Pinout / Pin List Click Here (Member Only)

C4AUIBW5200M3HJ Details

Manufacturer Part Number:
C4AUIBW5200M3HJ
Manufacturer:
YAGEO Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

C4AUIBW5200M3HJ Overview

Use the download button to access the C4AUIBW5200M3HJ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C4AUI, or try a keyword search, such as Film Capacitors
