A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
Implement a robust thermal management system, including a heat sink and thermal interface material. Monitor junction temperature (TJ) and adjust the system design accordingly.
Monitor voltage, current, and temperature. Implement overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (TSD) mechanisms to prevent damage.
Use a low-impedance gate driver circuit with a high-current capability. Ensure a short gate resistor (RG) and a low-inductance layout to minimize switching losses.
Implement ESD protection diodes (e.g., TVS diodes) on the input and output pins. Use a PCB layout with a solid ground plane and a Faraday cage structure to minimize ESD susceptibility.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C515C8EMCAFXQMA1 Overview

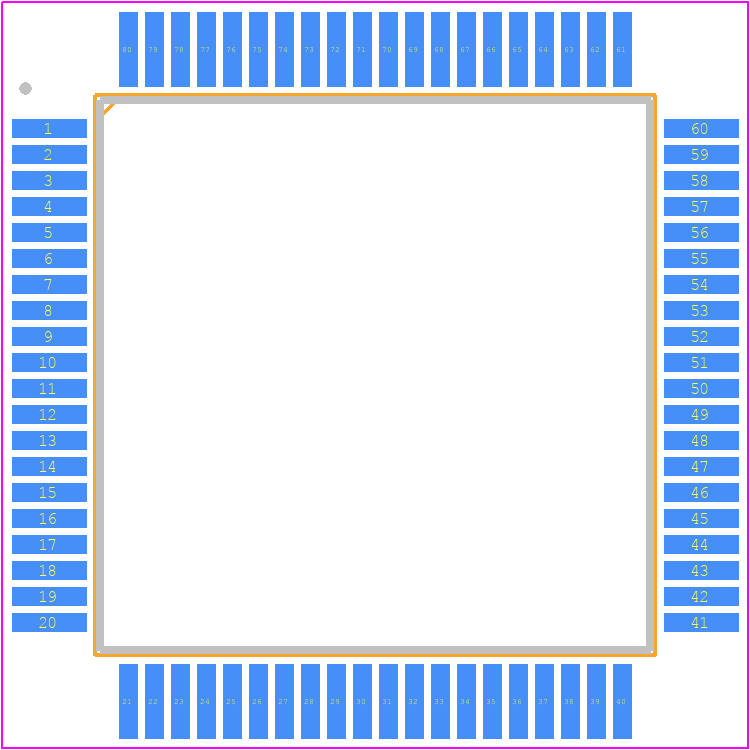

Use the download button to access the C515C8EMCAFXQMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C515C,
or try a keyword search, such as Microcontrollers
