C5750X5R1A107M280KC - TDK

Description: MULTILAYER CERAMIC CHIP CAPACITORS, 5750, Commercial grade, general (Up to 75V)

Download C5750X5R1A107M280KC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
C5750X5R1A107M280KC - TDK - PCB symbol
click to zoom
PCB Footprints

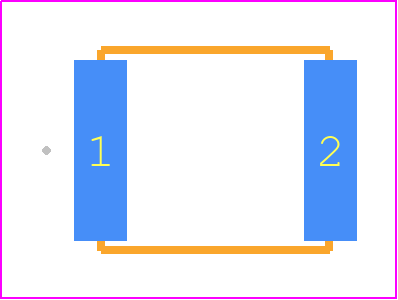

C5750X5R1A107M280KC - TDK PCB footprint - Other - Other - C5750_Commercial
click to zoom
3D Models
C5750X5R1A107M280KC - TDK - 3D model - Other - C5750_Commercial
click to zoom

C5750X5R1A107M280KC Details

  • Manufacturer Part Number:

    C5750X5R1A107M280KC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    10

  • Capacitance:

    100 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2.8 mm

  • JESD-609 Code:

    e3

  • Length:

    5.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 Inch

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Size Code:

    2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X5R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    5 mm

C5750X5R1A107M280KC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the C5750X5R1A107M280KC is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the C5750X5R1A107M280KC is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, making it suitable for use in high-vibration environments.
  • The Equivalent Series Resistance (ESR) of the C5750X5R1A107M280KC is 0.028 ohms, which is relatively low. This means the capacitor has low energy loss and can handle high-frequency applications.
  • The C5750X5R1A107M280KC has a maximum operating temperature of 125°C, making it suitable for use in high-temperature applications. However, the capacitance value may decrease at higher temperatures.
  • Yes, the C5750X5R1A107M280KC is suitable for use as a DC-blocking capacitor due to its low ESR and high capacitance value.
