C5750X7R1H335K230KM - TDK

Description: MULTILAYER CERAMIC CHIP CAPACITORS, 5750, Commercial grade, general (Up to 75V)

Download C5750X7R1H335K230KM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
C5750X7R1H335K230KM - TDK - PCB symbol
click to zoom
PCB Footprints

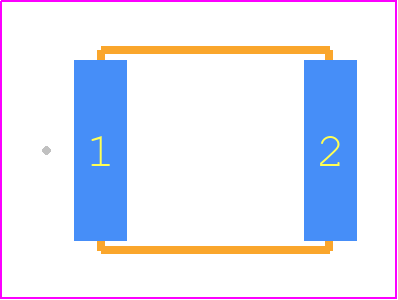

C5750X7R1H335K230KM - TDK PCB footprint - Other - Other - C5750_Commercial
click to zoom
3D Models
C5750X7R1H335K230KM - TDK - 3D model - Other - C5750_Commercial
click to zoom

C5750X7R1H335K230KM Details

  • Manufacturer Part Number:

    C5750X7R1H335K230KM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Capacitance:

    3.3 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2.3 mm

  • JESD-609 Code:

    e3

  • Length:

    5.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 INCH

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Size Code:

    2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Width:

    5 mm
