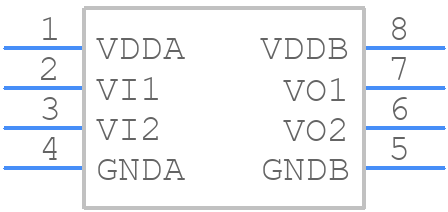

CA-IS3720LS - ChipAnalog - PCB symbol
click to zoom
PCB Footprints
CA-IS3720LS - ChipAnalog PCB footprint - Small Outline Packages - Small Outline Packages - 8‐Pin SOIC
click to zoom

CA-IS3720LS Details

  • Manufacturer Part Number:

    CA-IS3720LS

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ChipAnalog

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
