- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CA3102M
- Part Number CA3102M
- Manufacturer Renesas Electronics
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - CA3102M
- Released Date May 17, 2022
- Last Modified Date Oct 24, 2023 7:30 PM UTC
- Pinout / Pin List Click Here (Member Only)
CA3102M Details
-
Manufacturer Part Number:
CA3102M
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SOIC-14
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Date Of Intro:
2017-09-18
-
Manufacturer:
Renesas Electronics Corporation
-
YTEOL:
0
-
Amplifier Type:
OPERATIONAL AMPLIFIER
-
Architecture:
VOLTAGE-FEEDBACK
-
Average Bias Current-Max (IIB):
33 µA
CA3102M Frequently Asked Questions (FAQs)
-
A good PCB layout for the CA3102M involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
-
To ensure proper powering and decoupling of the CA3102M, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
-
The CA3102M is rated for operation from -40°C to +125°C, but it's recommended to operate within the -20°C to +85°C range for optimal performance and reliability. Exceeding the maximum operating temperature can affect the device's accuracy, stability, and lifespan.
-
To troubleshoot issues with the CA3102M, start by checking the power supply and decoupling, ensuring that the device is properly powered and filtered. Next, verify that the input and output signals are within the recommended ranges and that the device is properly configured. If issues persist, consult the datasheet and application notes for guidance, or contact Renesas Electronics Corporation's technical support.
-
Yes, the CA3102M is a high-frequency device and requires careful attention to EMI/EMC considerations. Use a shielded enclosure, keep the device away from other high-frequency sources, and ensure that the PCB layout and component placement minimize radiation and susceptibility to electromagnetic interference.
Trust Checks
Community Provided
System Verified
Community Approved
CA3102M Overview

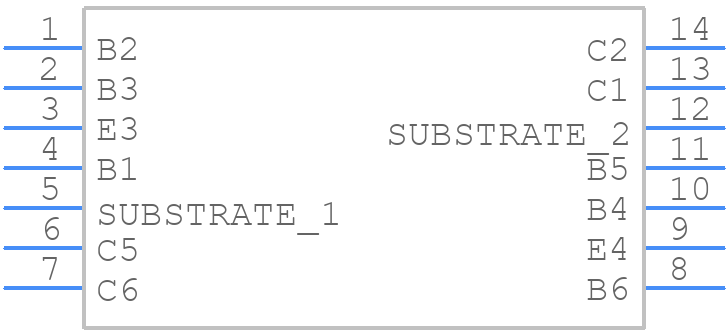

Use the download button to access the CA3102M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA310,
or try a keyword search, such as Operational Amplifiers
