A good PCB layout for the CA3102MZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the traces connected to the high-frequency pins.
To ensure proper biasing, make sure to connect the VCC pin to a stable 5V power supply, and the VEE pin to a stable -5V power supply. Also, ensure that the input signals are within the recommended common-mode voltage range, and that the output load impedance is within the recommended range.
The CA3102MZ can operate over a temperature range of -40°C to +85°C, but it's recommended to operate it within a temperature range of 0°C to +70°C for optimal performance and reliability.
Common issues with the CA3102MZ can be troubleshooted by checking the power supply voltage, ensuring proper grounding and decoupling, and verifying that the input signals are within the recommended range. Additionally, checking the output load impedance and ensuring that it's within the recommended range can also help resolve issues.
While the CA3102MZ can operate over a wide temperature range, it's not specifically designed for high-reliability or high-temperature applications. For such applications, it's recommended to use a more specialized device that's designed for high-reliability and high-temperature operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CA3102MZ Overview

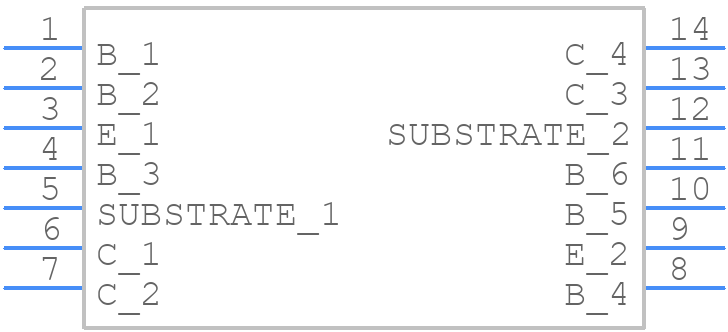

Use the download button to access the CA3102MZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA310,
or try a keyword search, such as Operational Amplifiers
