CA3280AE - Renesas Electronics

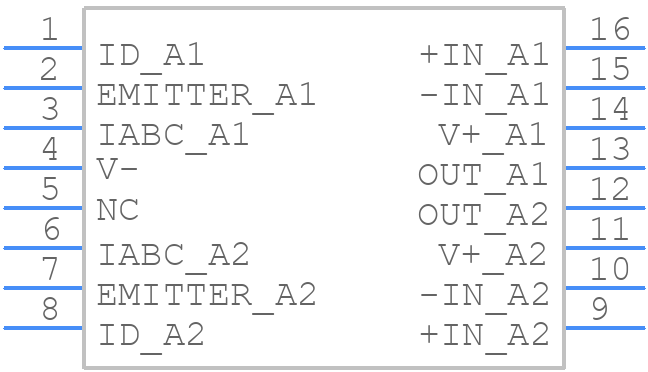

CA3280AE Details

• Manufacturer Part Number:

  CA3280AE

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DIP-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  TRANSCONDUCTANCE

• Average Bias Current-Max (IIB):

  8 µA

• Bandwidth (3dB)-Nom:

  9 MHz

• Bias Current-Max (IIB) @25C:

  5 µA

• Common-mode Reject Ratio-Min:

  94 dB

• Common-mode Reject Ratio-Nom:

  100 dB

• Frequency Compensation:

  NO

• Input Offset Current-Max (IIO):

  0.7 µA

• Input Offset Voltage-Max:

  1500 µV

• JESD-30 Code:

  R-PDIP-T16

• Length:

  19.17 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  5.33 mm

• Slew Rate-Nom:

  125 V/us

• Supply Current-Max:

  4.8 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  9000

• Voltage Gain-Min:

  0.05

• Wideband:

  NO

• Width:

  7.62 mm
