Description:The CA91L862A (QSpan II) is a PCI-to-Host processor bridge for the Freescale PowerQUICC (MPC860/850/821), the QUICC (MC68360), and the MC68040 processors. The QSpan II operates at speeds up to 50 MHz on the processor bus, with programmable parity and burst/prefetch capability. It provides 32-bit / 33 MHz PCI 2.2 support for embedded processor applications.
Renesas provides a recommended PCB layout guide for the CA91L862A-50ILV, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact Renesas support for more information.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and derating guidelines in the datasheet. Additionally, consider using thermal interface materials, heat sinks, or fans to reduce the junction temperature. Renesas also provides thermal simulation models to help with design optimization.
Renesas recommends following the JEDEC J-STD-020D.1 standard for soldering conditions, which specifies a peak temperature of 260°C and a dwell time of 30 seconds. Additionally, use a solder with a melting point above 217°C to ensure reliable joints.
To troubleshoot issues with the internal voltage regulator, check the input voltage, output voltage, and current consumption. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Also, check for any signs of overheating or excessive current consumption. Renesas provides application notes and technical support to help with troubleshooting.
The CA91L862A-50ILV has built-in ESD protection diodes and latch-up prevention circuits to protect against electrostatic discharge and latch-up events. However, it is still recommended to follow proper ESD handling procedures and use ESD protection devices in the system design to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CA91L862A-50ILV Overview

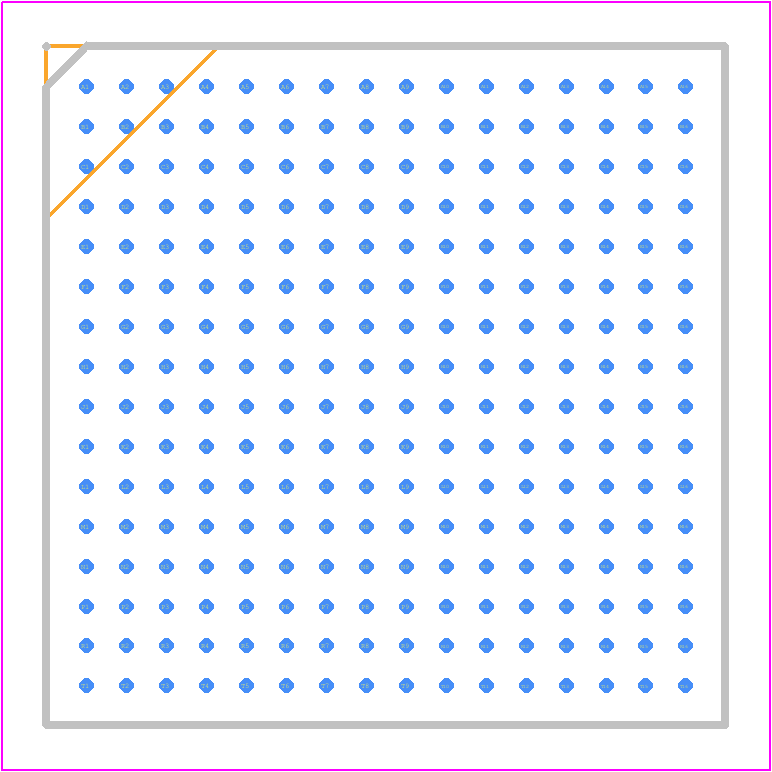

Use the download button to access the CA91L862A-50ILV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA91L,
or try a keyword search, such as Bus Controllers
