CAA573X7R1E157M670LH - TDK

Description: Specialty Ceramic Capacitors 2232 25VDC 150uF 20% X7R

Download CAA573X7R1E157M670LH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CAA573X7R1E157M670LH - TDK - PCB symbol
click to zoom
PCB Footprints

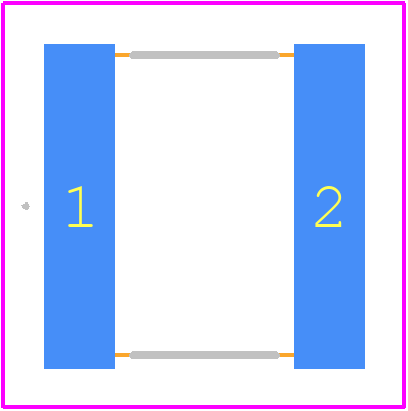

CAA573X7R1E157M670LH - TDK PCB footprint - Other - Other - CAA573X7R1E157M670LH-3
click to zoom
3D Models
CAA573X7R1E157M670LH - TDK - 3D model - Other - CAA573X7R1E157M670LH-3
click to zoom

CAA573X7R1E157M670LH Details

  • Manufacturer Part Number:

    CAA573X7R1E157M670LH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    6.7 mm

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Size Code:

    2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    J BEND

  • Width:

    7.5 mm

CAA573X7R1E157M670LH Frequently Asked Questions (FAQs)

  • The recommended land pattern for CAA573X7R1E157M670LH can be found in the TDK Corporation's Capacitor Land Pattern document, which provides guidelines for PCB layout and footprint design.
  • The CAA573X7R1E157M670LH is a moisture-sensitive device. It's recommended to follow the TDK Corporation's guidelines for handling and storage, including baking the components before reflow soldering and using a dry pack or nitrogen-filled packaging.
  • The maximum voltage derating for CAA573X7R1E157M670LH is typically 80% of the rated voltage. However, it's recommended to consult with TDK Corporation's application engineers or refer to their voltage derating guidelines for specific use cases.
  • The CAA573X7R1E157M670LH is rated for operation up to 125°C. However, the capacitor's performance and lifespan may be affected at high temperatures. It's recommended to consult with TDK Corporation's application engineers to determine the suitability of this capacitor for specific high-temperature applications.
  • The ESR of CAA573X7R1E157M670LH is not explicitly stated in the datasheet. However, TDK Corporation provides ESR data for similar capacitors in their technical notes or application notes. It's recommended to consult with their application engineers or refer to their ESR calculation guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAA573X7R1E157M670LH Overview

Use the download button to access the CAA573X7R1E157M670LH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAA57, or try a keyword search, such as Ceramic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
