SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR
DS Breakdown Voltage-Min:
1200 V
Drain Current-Max (ID):
120 A
Drain-source On Resistance-Max:
0.014 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
30 pF
JESD-30 Code:
R-XUFM-X18
Number of Elements:
2
Number of Terminals:
18
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
N-CHANNEL
Reference Standard:
IEC-60747-8-4
Surface Mount:
NO
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON CARBIDE
CAB011M12FM3T Frequently Asked Questions (FAQs)
Wolfspeed provides a recommended PCB layout and thermal management guide in their application note AN-1101, which includes guidelines for thermal vias, copper thickness, and heat sink attachment.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including junction temperature, voltage, and current. Additionally, implementing a thermal monitoring and shutdown circuit can help prevent overheating.
The CAB011M12FM3T is a sensitive device and requires proper ESD protection during handling and assembly. Wolfspeed recommends following standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials.
The CAB011M12FM3T is a commercial-grade device, but Wolfspeed offers a high-reliability version, the CAB011M12FM3T-HR, which is designed for aerospace and defense applications. This version undergoes additional screening and testing to ensure higher reliability and performance.
The lead time and minimum order quantity for the CAB011M12FM3T may vary depending on the region and distributor. It's recommended to check with authorized distributors, such as Digi-Key or Mouser, for the most up-to-date information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAB011M12FM3T Overview

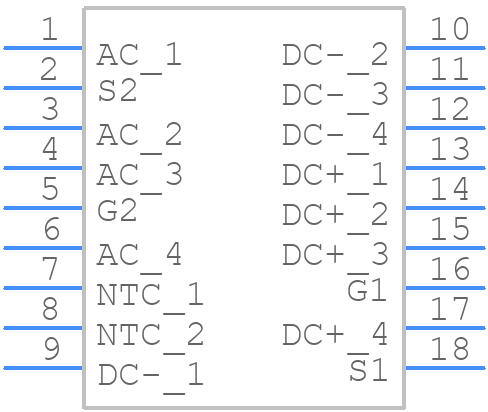

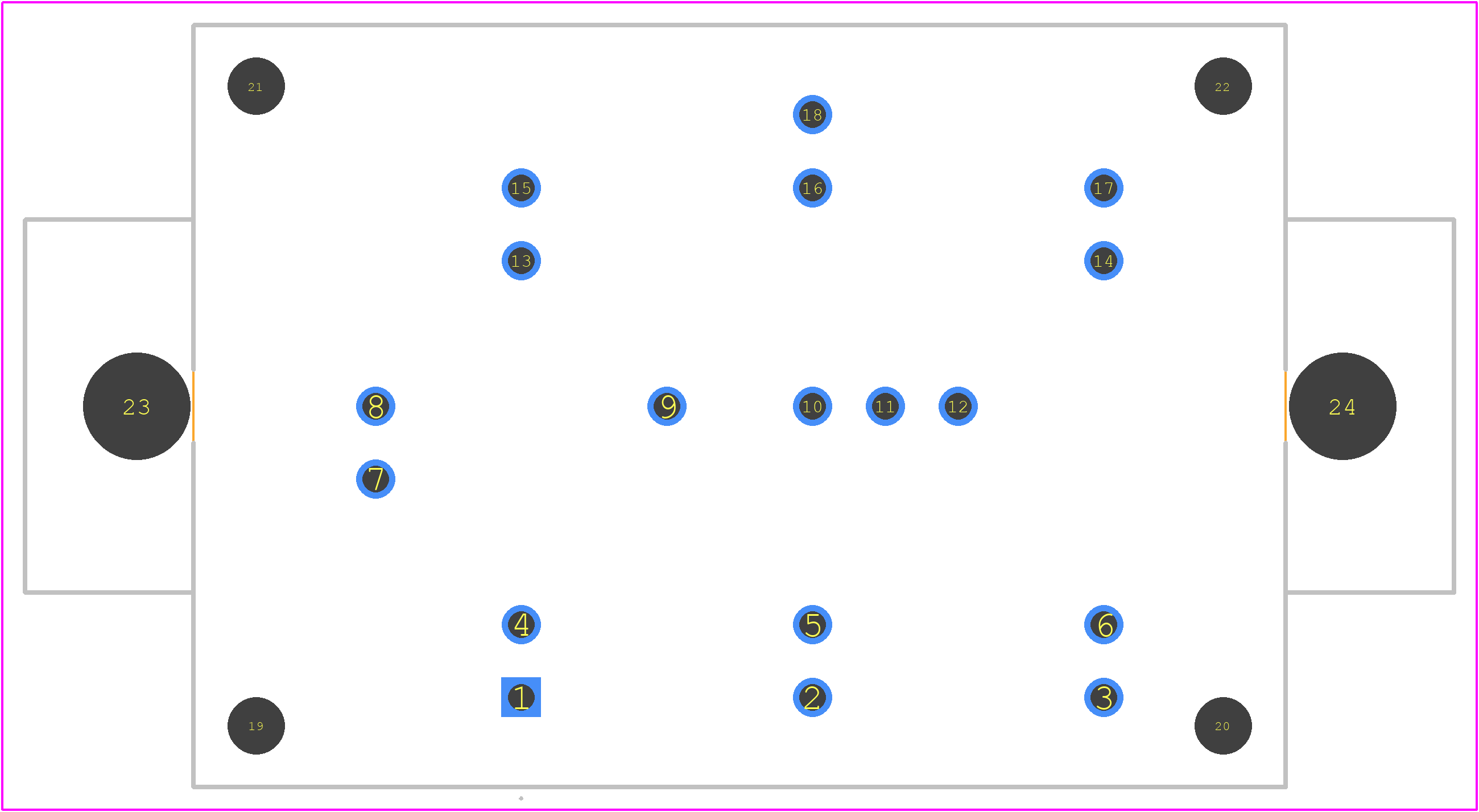

Use the download button to access the CAB011M12FM3T schematic symbol and PCB footprint.
