Part Image

CAM-M8C - u-blox

Description: CAM-M8 RF Receiver BeiDou, GLONASS, GNSS, GPS 1.575GHz -167dBm On-Board, Chip Module

Download CAM-M8C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

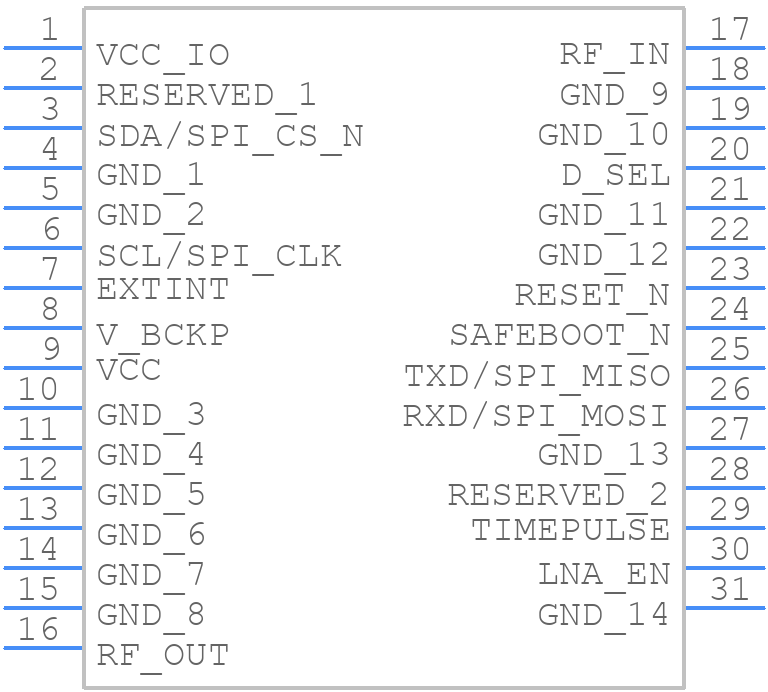

CAM-M8C - u-blox - PCB symbol
click to zoom
PCB Footprints

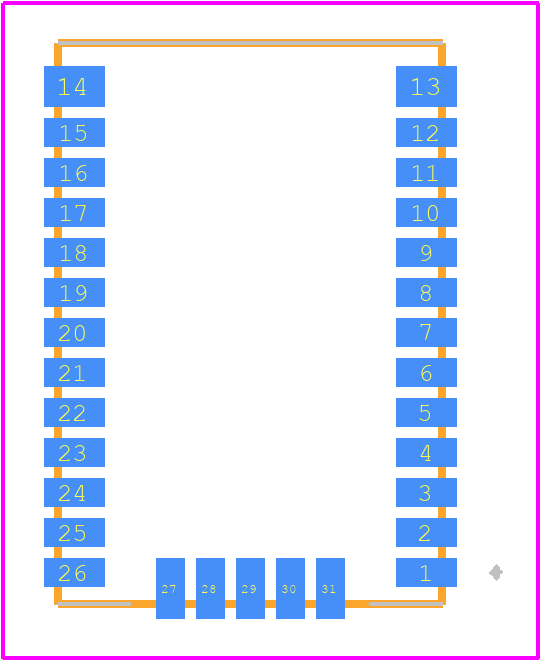

CAM-M8C - u-blox PCB footprint - Other - Other - CAM-M8C-3
click to zoom
3D Models
CAM-M8C - u-blox - 3D model - Other - CAM-M8C-3
click to zoom

CAM-M8C Details

  • Manufacturer Part Number:

    CAM-M8C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    u-blox AG

CAM-M8C Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply power to the VCC pin, followed by the EN pin, and then the RST pin. This ensures proper initialization of the module.
  • The UART interface on the CAM-M8C is configured using the UBX-CFG-VALSET command. You can set the baud rate, data bits, parity, and stop bits using this command. Refer to the u-blox protocol specification for more details.
  • The maximum update rate for the GNSS data on the CAM-M8C is 18 Hz. However, this can be adjusted using the UBX-CFG-RATE command to trade off between update rate and power consumption.
  • You can enable/disable the different GNSS systems using the UBX-CFG-GNSS command. This command allows you to select which GNSS systems to use and which to ignore.
  • The accuracy of the CAM-M8C's internal clock is typically around 1-2 ppm (parts per million). This is sufficient for most GNSS applications, but if higher accuracy is required, an external clock source can be used.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAM-M8C Overview

Use the download button to access the CAM-M8C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAM-M, or try a keyword search, such as RF/Microwave Antennas

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
