CAP1106-1-AIA-TR - Microchip

Description: Capacitive Touch Sensors 6 Channel Capacitive Touch Sensor

Download CAP1106-1-AIA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

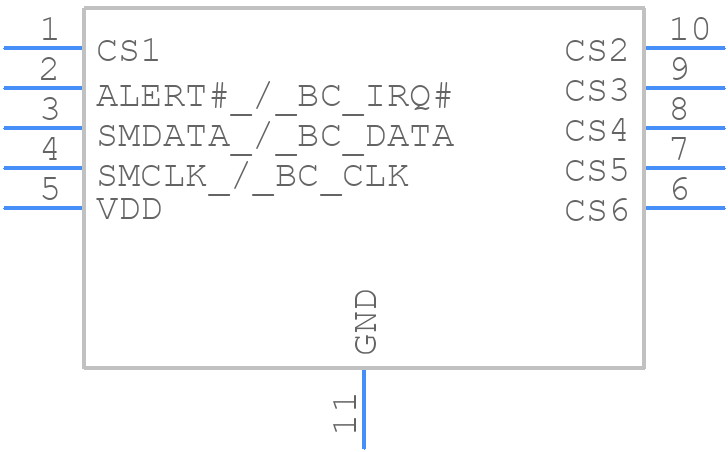

CAP1106-1-AIA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1106-1-AIA-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-162304
click to zoom
3D Models
CAP1106-1-AIA-TR - Microchip - 3D model - Small Outline No-lead - DFN-162304
click to zoom

CAP1106-1-AIA-TR Details

  • Manufacturer Part Number:

    CAP1106-1-AIA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

CAP1106-1-AIA-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1106-1-AIA-TR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the capacitor close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The CAP1106-1-AIA-TR requires a stable power supply with a voltage range of 2.7V to 5.5V. Ensure the power supply is decoupled with a 10uF capacitor and a 100nF capacitor in parallel to reduce noise and ripple.
  • The CAP1106-1-AIA-TR has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation.
  • To troubleshoot issues with the CAP1106-1-AIA-TR, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure the device is properly soldered and mounted.
  • Yes, the CAP1106-1-AIA-TR is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CAP1106-1-AIA-TR Overview

Use the download button to access the CAP1106-1-AIA-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAP11, or try a keyword search, such as Other Signal Circuits
