CAP1166-1-BP-TR - Microchip

Description: Capacitive Touch Sensors 6 Channel Capacitive Touch Sensor 6 LED

Download CAP1166-1-BP-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

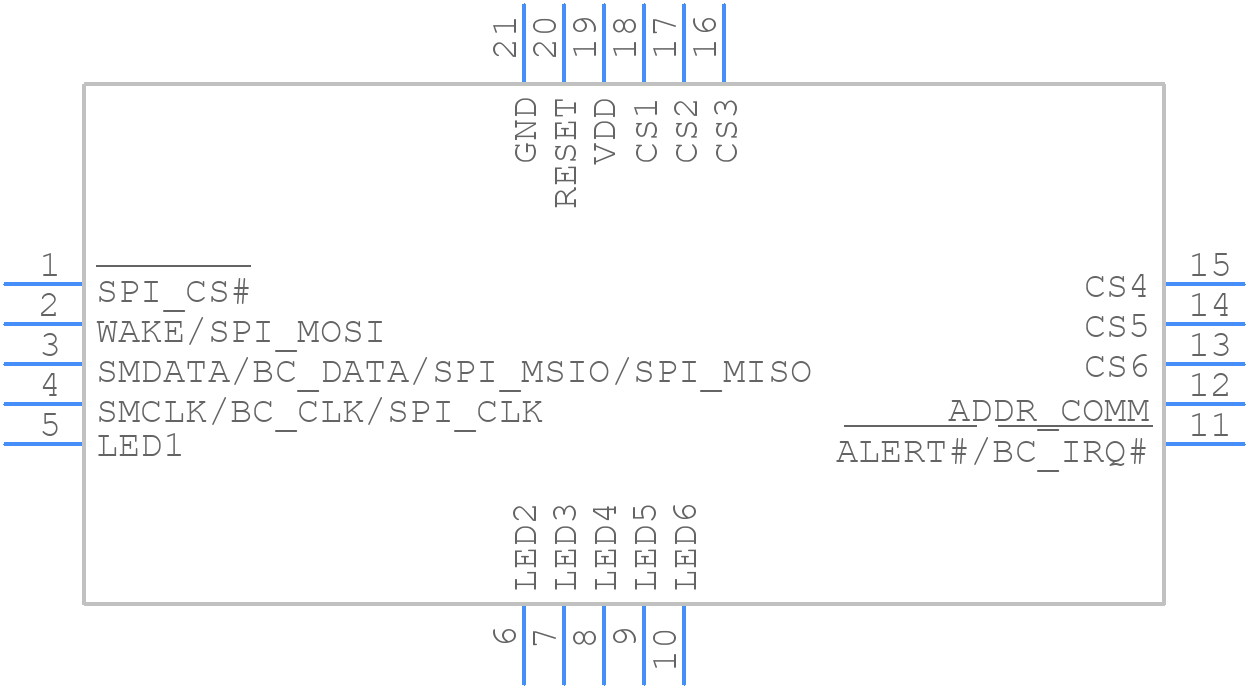

CAP1166-1-BP-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
CAP1166-1-BP-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Pin QFN 4mm x 4mm
click to zoom
3D Models
CAP1166-1-BP-TR - Microchip - 3D model - Quad Flat No-Lead - 20-Pin QFN 4mm x 4mm
click to zoom

CAP1166-1-BP-TR Details

  • Manufacturer Part Number:

    CAP1166-1-BP-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CAPACITIVE TOUCH SCREEN CONTROLLERS

CAP1166-1-BP-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAP1166-1-BP-TR involves keeping the capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • Ensure a stable power supply, use a 0.1uF decoupling capacitor between VDD and GND, and add a 10uF bulk capacitor for each power rail to minimize noise and voltage drops.
  • The CAP1166-1-BP-TR operates from -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance and reliability.
  • Check the power supply, decoupling, and PCB layout. Verify correct pin connections and signal integrity. Use oscilloscopes or logic analyzers to debug signals and identify issues.
  • Yes, handle the CAP1166-1-BP-TR with ESD-protective equipment, such as wrist straps or mats, and avoid touching the pins or components to prevent damage.
