Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
The CAT16-33R0F8LF is designed to operate up to 100 kHz, but it's recommended to derate the current rating at higher frequencies to avoid overheating and ensure reliable operation.
While the CAT16-33R0F8LF has a rated operating temperature range of -40°C to 125°C, it's recommended to derate the current rating at higher temperatures to avoid overheating and ensure reliable operation.
Bourns recommends consulting the relevant safety and regulatory standards (e.g. UL, IEC, CE) and performing thorough testing and validation to ensure the CAT16-33R0F8LF meets the specific requirements of your application.
Bourns recommends storing the CAT16-33R0F8LF in a dry, cool place, away from direct sunlight and moisture, and handling the device with anti-static precautions to prevent damage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CAT16-33R0F8LF Overview

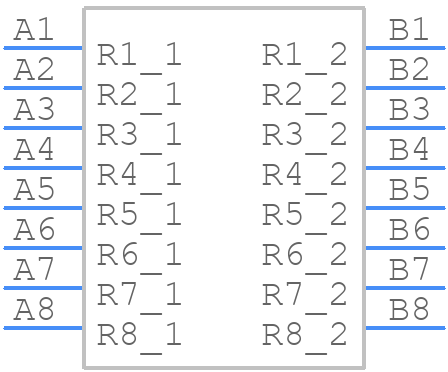

Use the download button to access the CAT16-33R0F8LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT16,
or try a keyword search, such as Array/Network Resistors
