0.150 INCH, HALOGEN FREE AND ROHS COMPLIANT, MS-012, SOIC-8
Pin Count:
8
Manufacturer Package Code:
751BD
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Manufacturer:
onsemi
YTEOL:
0
Clock Frequency-Max (fCLK):
5 MHz
Data Retention Time-Min:
100
Endurance:
1000000 Write/Erase Cycles
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Memory Density:
131072 bit
Memory IC Type:
EEPROM
Memory Width:
8
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Number of Words:
16384 words
Number of Words Code:
16000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
16KX8
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Parallel/Serial:
SERIAL
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Serial Bus Type:
SPI
Standby Current-Max:
0.000001 A
Supply Current-Max:
0.004 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.8 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
Write Cycle Time-Max (tWC):
5 ms
Write Protection:
HARDWARE/SOFTWARE
CAT25128VI-G Frequently Asked Questions (FAQs)
A good PCB layout for the CAT25128VI-G involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces connected to the clock and data pins. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND, and to keep the device away from high-frequency noise sources.
To ensure data integrity, it's essential to follow proper write and read protocols, use a valid clock signal, and implement error detection and correction mechanisms such as CRC or checksum. Additionally, it's recommended to use a pull-up resistor on the WP pin to prevent accidental writes, and to use a capacitor on the VCC pin to filter out noise.
The maximum operating frequency of the CAT25128VI-G is 10MHz. Operating the device at higher frequencies can increase power consumption, which can lead to overheating and reduced reliability. It's recommended to operate the device at the lowest frequency necessary for the application to minimize power consumption and heat generation.
The Hold pin should be tied to VCC or left floating to enable normal operation. The WP pin should be tied to VCC to enable write protection, or tied to GND to disable write protection. It's recommended to use a pull-up resistor on the WP pin to prevent accidental writes, and to ensure that the WP pin is properly configured before attempting to write to the device.
The CAT25128VI-G is rated for operation up to 85°C. To ensure reliable operation in high-temperature environments, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and avoid operating the device near its maximum temperature rating. Additionally, it's recommended to follow proper thermal design guidelines and to use thermal simulation tools to ensure reliable operation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CAT25128VI-G Overview

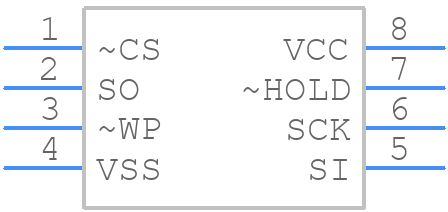

Use the download button to access the CAT25128VI-G schematic symbol, PCB footprint, and 3D model.
