CAT3636 - onsemi

Description: he CAT3636 is a high efficiency fractional charge pump that can drive up to six LEDs programmable by a one wire digital interface. The inclusion of a 1.33x fractional charge pump

Download CAT3636 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CAT3636 model

Email notifications will be applied after download.

Send part feedback

Symbol

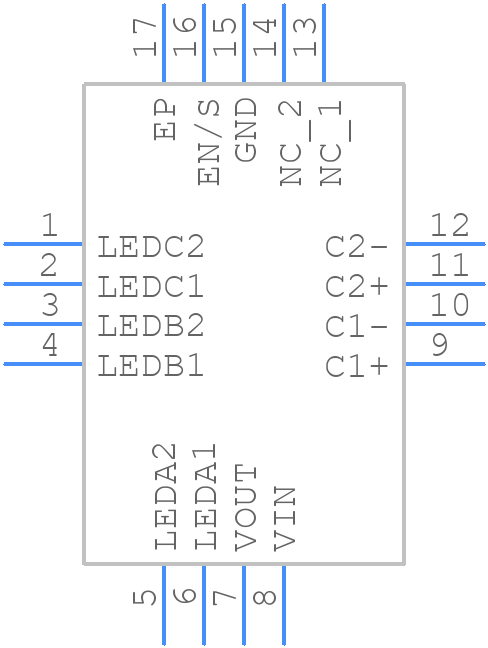

CAT3636 - onsemi - PCB symbol

PCB Footprints

CAT3636 - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN16, 3x3*-*

3D Models

CAT3636 - onsemi - 3D model - Quad Flat No-Lead - TQFN16, 3x3*-*

Datasheet Download Datasheet
Stock & Prices Price & Stock for CAT3636
Part Number CAT3636
Manufacturer onsemi
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - TQFN16, 3x3*-*
Released Date Oct 20, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
