CAT6201VP2-GT3 - onsemi

Description: Guaranteed 300 mA Continuous Output Current; Low Dropout Voltage of 250 mV Typical at 300 mA; Input Voltage Range: 3.3 V to 13.5 V; User Adjustable Output Voltage; User Programmable Current Limit; Fault Output to Indicate Under-voltage, Current Limiting or Thermal Shutdown has Occurred; Fault Blanking: 3 ms; VOUT Withstands Battery Fault Voltages of up to 14 V; Soft-Start Prevents Current Surges; Stable with Ceramic Output Capacitor; ±1.5% Output Voltage Initial Accuracy; ±2.5% Accuracy Over Temperature; Th

Download CAT6201VP2-GT3 Model

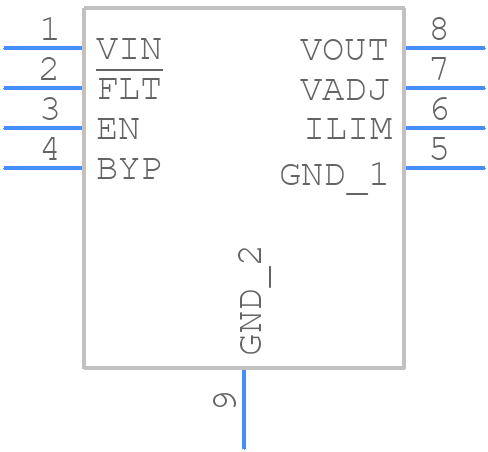

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CAT6201VP2-GT3 - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - TDFN8, 2x3, 0.5P CASE 511AK ISSUE B
click to zoom
3D Models
CAT6201VP2-GT3 - onsemi  - 3D model - Small Outline No-lead - TDFN8, 2x3, 0.5P CASE 511AK ISSUE B
click to zoom

CAT6201VP2-GT3 Details

  • Manufacturer Part Number:

    CAT6201VP2-GT3

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN8, 2x3

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    511AK

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.35 V

  • Dropout Voltage1-Nom:

    0.25 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.4

  • Load Regulation-Max(%):

    2%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    12.5 V

  • Output Voltage1-Min:

    1.232 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

CAT6201VP2-GT3 Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAT6201VP2-GT3 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
  • To ensure stability, make sure to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and keep the input voltage within the recommended range. Additionally, avoid using long input traces and keep the device away from noise sources.
  • The CAT6201VP2-GT3 can handle input voltages up to 18V, but it's recommended to keep the input voltage within the recommended range of 4.5V to 15V for optimal performance and reliability.
  • The CAT6201VP2-GT3 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability. Consult the datasheet for specific derating guidelines.
  • The output voltage of the CAT6201VP2-GT3 is adjustable using the FB pin. The output voltage can be calculated using the formula: VOUT = 1.25V x (R1/R2) + 0.6V, where R1 and R2 are the resistors connected to the FB pin.
