CAT6202VP2-GT3 - onsemi

Description: Obsolete - 150 mA LDO Regulator

Download CAT6202VP2-GT3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

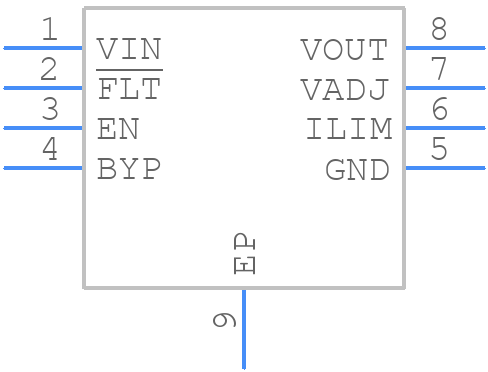

CAT6202VP2-GT3 - onsemi - PCB symbol
click to zoom
PCB Footprints
CAT6202VP2-GT3 - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - CAT6202VP2-GT3
click to zoom
3D Models
CAT6202VP2-GT3 - onsemi - 3D model - Small Outline No-lead - CAT6202VP2-GT3
click to zoom

CAT6202VP2-GT3 Details

  • Manufacturer Part Number:

    CAT6202VP2-GT3

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN8, 2x3

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    511AK

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.35 V

  • Dropout Voltage1-Nom:

    0.25 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.4

  • Load Regulation-Max(%):

    2.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    12.5 V

  • Output Voltage1-Min:

    1.238 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

CAT6202VP2-GT3 Frequently Asked Questions (FAQs)

  • A good PCB layout for the CAT6202VP2-GT3 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended compensation network values, use a low-ESR output capacitor, and keep the output capacitor close to the device. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The CAT6202VP2-GT3 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation according to the ambient temperature to ensure reliable operation.
  • Yes, the CAT6202VP2-GT3 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's recommended to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the CAT6202VP2-GT3, start by verifying the input voltage, output current, and PCB layout. Check for any signs of overheating, and ensure that the device is properly decoupled. Use an oscilloscope to measure the output voltage and current, and consult onsemi's application notes and technical support resources for further guidance.
