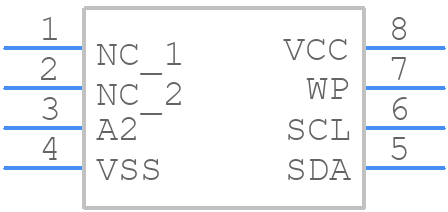

CAV24C08WE-GT3 - onsemi

CAV24C08WE-GT3 Details

• Manufacturer Part Number:

  CAV24C08WE-GT3

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC 8, 150 mils

• Pin Count:

  8

• Manufacturer Package Code:

  751BD

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  5

• Additional Feature:

  100 YEAR DATA RETENTION

• Clock Frequency-Max (fCLK):

  0.4 MHz

• Data Retention Time-Min:

  100

• Endurance:

  1000000 Write/Erase Cycles

• I2C Control Byte:

  1010DDDR

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  4.9 mm

• Memory Density:

  8192 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  1

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  8

• Number of Words:

  8192 words

• Number of Words Code:

  8000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  8KX1

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  SERIAL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Reverse Pinout:

  NO

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.75 mm

• Serial Bus Type:

  I2C

• Standby Current-Max:

  0.000005 A

• Supply Current-Max:

  0.002 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Supply Voltage-Nom (Vsup):

  3.6 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Toggle Bit:

  NO

• Width:

  3.9 mm

• Write Cycle Time-Max (tWC):

  5 ms

• Write Protection:

  HARDWARE
