Description:16 Constant current-sink channels; Serial interface up to 25 MHz clock frequency; 3 V to 5.5 V logic supply; LED current range from 2 mA to 100 mA; LED current set by external RSET resistor; 300 mV LED dropout at 30 mA; Thermal shutdown protection
The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device, ensure good thermal design, and consider using a heat sink or thermal interface material if necessary.
The CAV4016HV6-T2 has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices if the device will be exposed to high ESD stress.
Yes, the CAV4016HV6-T2 is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q101 qualification and follow the recommended design and testing guidelines for these applications.
The recommended soldering conditions for the CAV4016HV6-T2 involve using a peak reflow temperature of 260°C, a soldering time of 10-30 seconds, and a soldering method that follows the IPC J-STD-020 standard.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAV4016HV6-T2 Overview

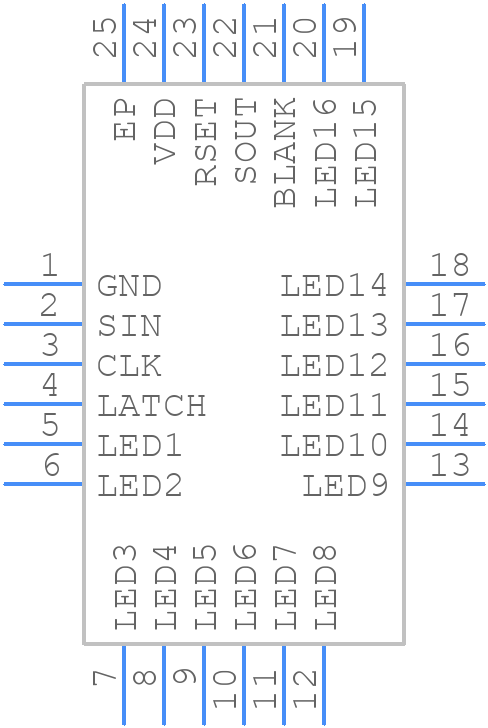

Use the download button to access the CAV4016HV6-T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAV40,
or try a keyword search, such as Display Drivers
