CB1-P-12V - Panasonic

CB1-P-12V Details

• Manufacturer Part Number:

  CB1-P-12V

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6.77

• Additional Feature:

  Ratings are as per NO and NC rating is = 10 A 28 VDC

• Body Breadth:

  22 mm

• Body Height:

  25 mm

• Body Length or Diameter:

  26 mm

• Coil Current(DC)-Max:

  0.117 A

• Coil Operate Voltage(DC):

  7 V

• Coil Power:

  1400 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  103 Ω

• Coil Voltage(DC)-Max:

  16 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  40 A

• Contact (DC) Max Power Rating R Load:

  1.4W@14VDC

• Contact (DC) Max Rating R Load:

  40A@14VDC

• Contact Voltage(DC)-Max:

  14 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  Silver Alloy

• Input Switching Control Type:

  Random

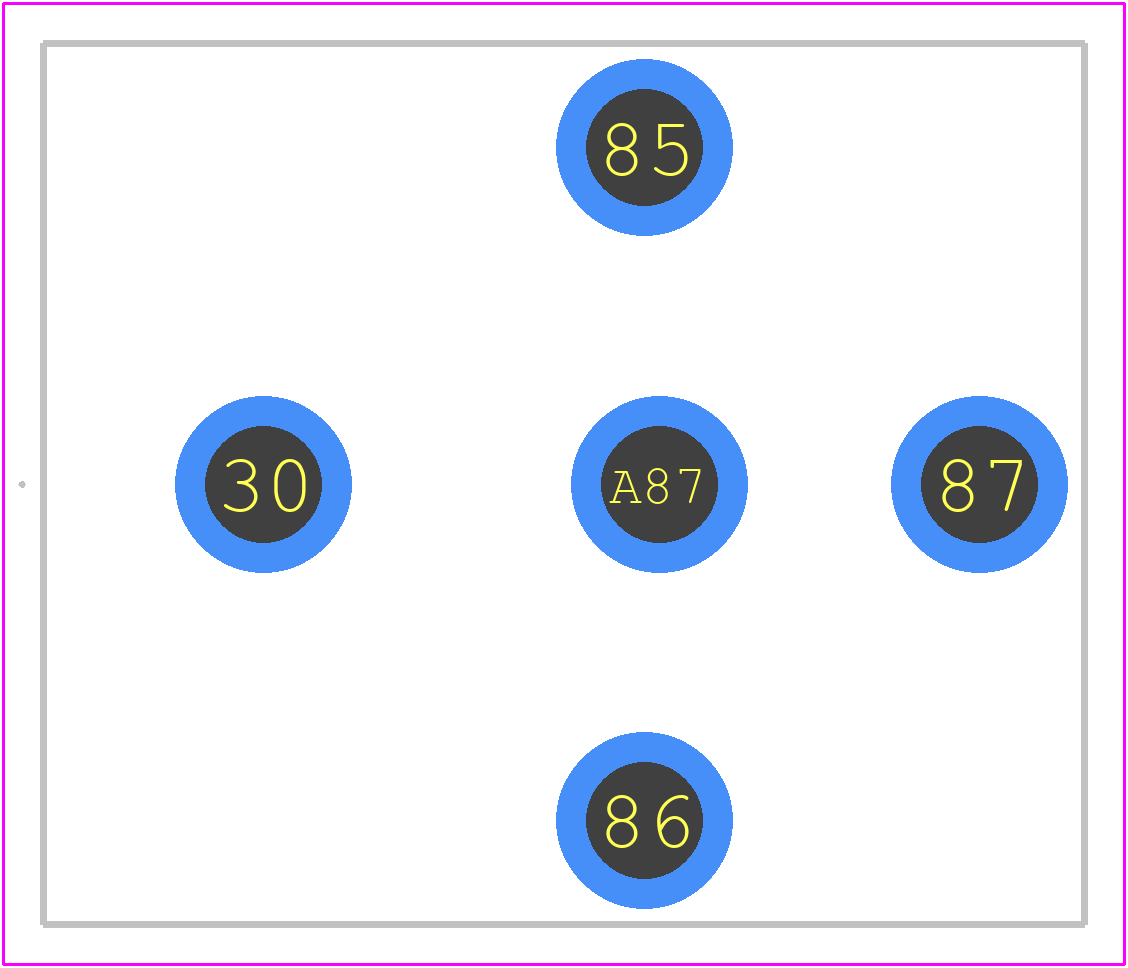

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  5

• Operate Time:

  15 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  26mm x 22mm x 25mm

• Relay Action:

  MOMENTARY

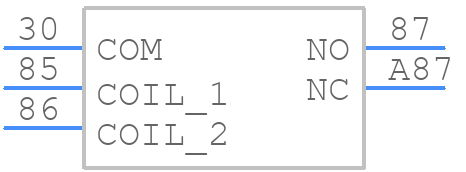

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  15 ms

• Sealing:

  EPOXY RESIN SEALED

• Surface Mount:

  NO

• Terminal Length:

  0.005499110998221997 inch

• Termination Type:

  SOLDER
