Wolfspeed provides a recommended PCB layout and thermal management guide in their application note AN-1101, which includes guidelines for thermal vias, copper thickness, and heat sink attachment.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and case temperature (Tc). Implementing a thermal monitoring and control system, such as a thermistor or thermocouple, can help prevent overheating.
The CBB021M12FM3T is a sensitive device and requires proper ESD protection during handling and assembly. Wolfspeed recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
While the CBB021M12FM3T is designed to operate in a wide temperature range, it's essential to follow the recommended operating conditions and take precautions to prevent moisture ingress. Wolfspeed recommends using conformal coating or potting compounds to protect the device in high-humidity environments.
Wolfspeed provides guidelines for soldering and assembly in their application note AN-1102, which includes recommendations for soldering temperature, time, and flux type, as well as assembly techniques for minimizing thermal resistance and ensuring reliable connections.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CBB021M12FM3T Overview

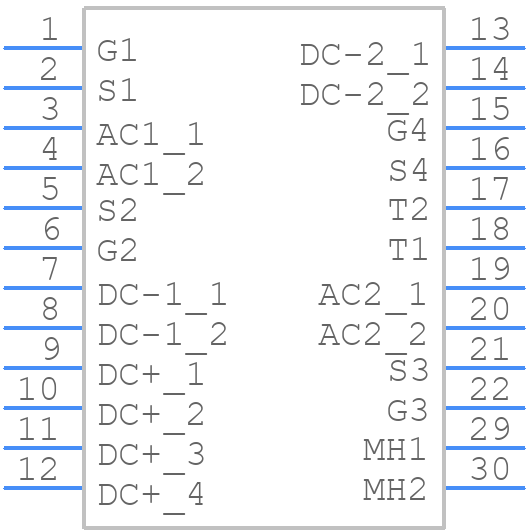

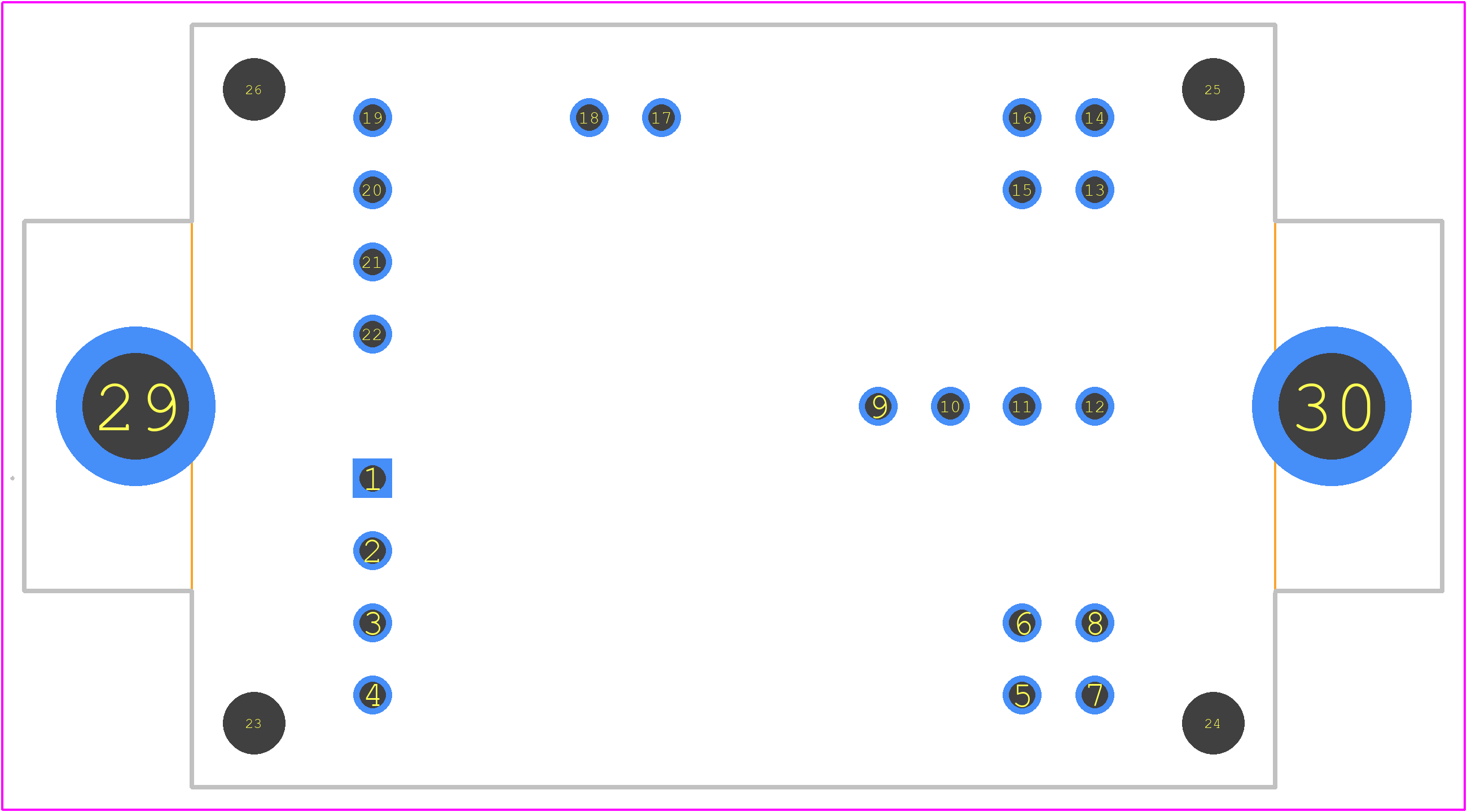

Use the download button to access the CBB021M12FM3T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBB02,
or try a keyword search, such as Power Field-Effect Transistors
