CBBJ79 - Cinch Connectivity Solutions

Description: TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount, Through Hole Solder

Download CBBJ79 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CBBJ79 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

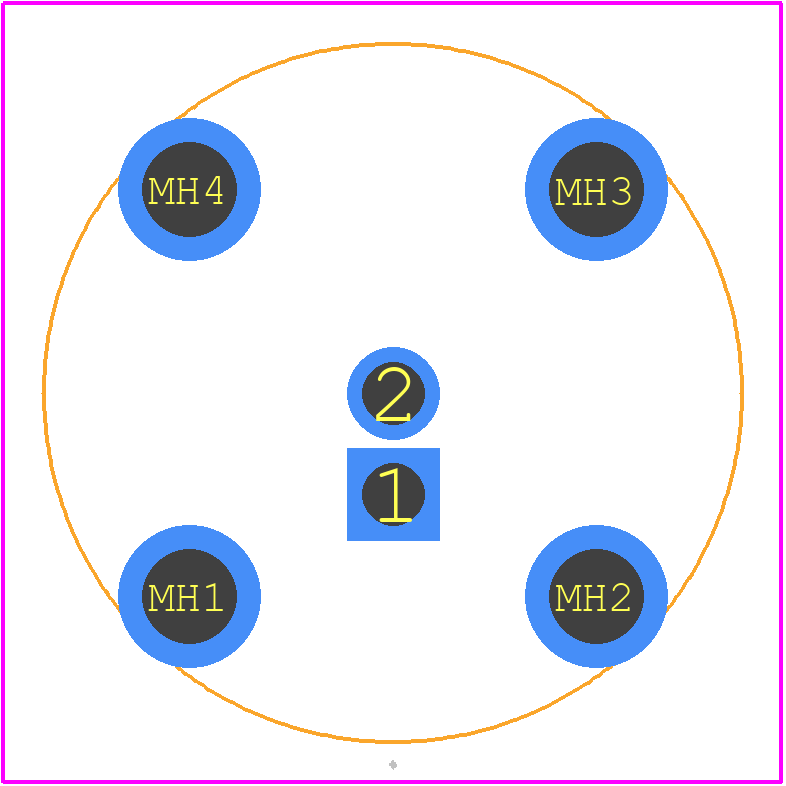

CBBJ79 - Cinch Connectivity Solutions PCB footprint - Other - Other - CBBJ79-3
click to zoom
3D Models
CBBJ79 - Cinch Connectivity Solutions - 3D model - Other - CBBJ79-3
click to zoom

CBBJ79 Details

  • Manufacturer Part Number:

    CBBJ79

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    7.89

  • Connector Type:

    RF TRIAXIAL-BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

CBBJ79 Frequently Asked Questions (FAQs)

  • The recommended torque for the CBBJ79 connectors is 10-12 in-lbs (1.1-1.4 Nm) for the screw machine threads and 5-7 in-lbs (0.6-0.8 Nm) for the jack screws.
  • Yes, the CBBJ79 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-STD-202, Method 204, Condition D.
  • The operating temperature range of the CBBJ79 is -55°C to 125°C (-65°F to 257°F).
  • Yes, the CBBJ79 is designed to be compatible with other Cinch Connectivity Solutions products, including their circular connectors and cable assemblies.
  • The CBBJ79 has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBBJ79 Overview

Use the download button to access the CBBJ79 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBBJ7, or try a keyword search, such as RF Twinax/Triax/Quadax Connectors
