CBD24W7M3S0T0/AA - Positronic

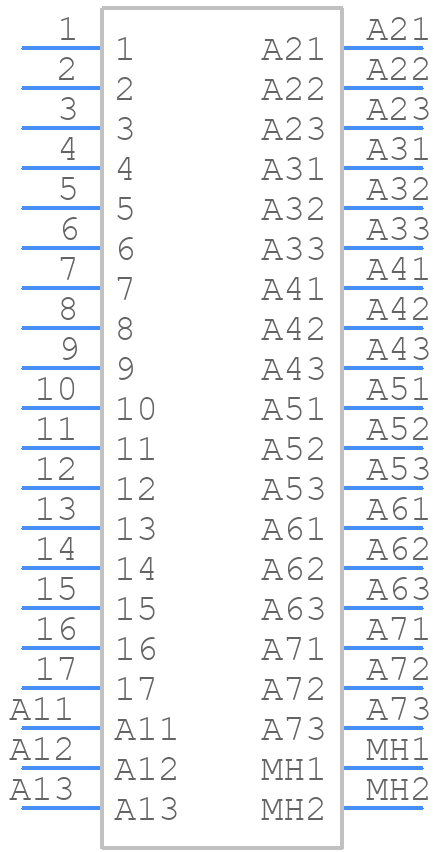

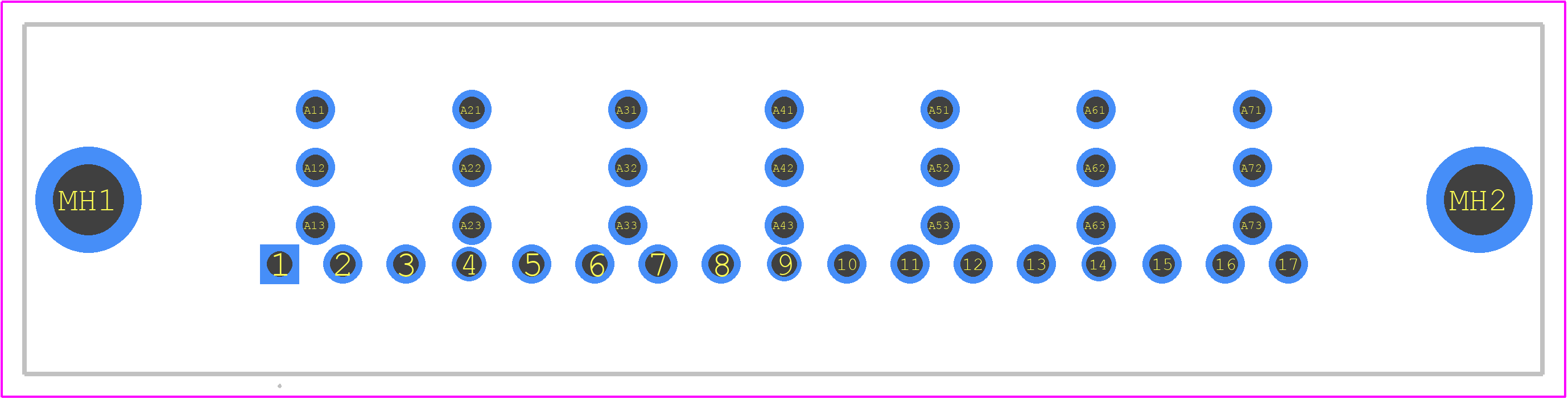

CBD24W7M3S0T0/AA Details

• Manufacturer Part Number:

  CBD24W7M3S0T0/AA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Amphenol Positronic

• YTEOL:

  8.75

• Additional Feature:

  TERMINAL PITCH FOR POWER CONTACTS IS 6.86 MM

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.605 inch

• Body Depth:

  0.289 inch

• Body Length:

  2.635 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Arrangement:

  S17P7

• Contact Design:

  MACHINED

• Contact Finish Mating:

  GOLD FLASH OVER NICKEL/GOLD (50) OVER NICKEL

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  8 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1414VAC V

• Durability:

  500 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLUE

• Insulator Material:

  GLASS FILLED POLYESTER

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  YES

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Rated Current (Power):

  80 A

• Rated Current (Signal):

  7.5 A

• Reference Standard:

  CSA, UL

• Shell Finish:

  ZINC

• Shell Material:

  STEEL

• Shell Size:

  5/D

• Terminal Length:

  0.17 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  24

• UL Flammability Code:

  94V-0
