CBD24W7M57R6000 footprint, schematic symbol and 3D model by Positronic

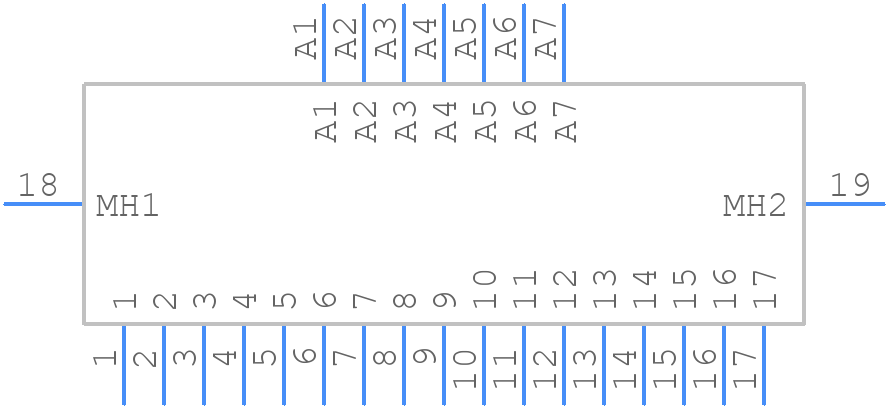

Symbol

click to zoom

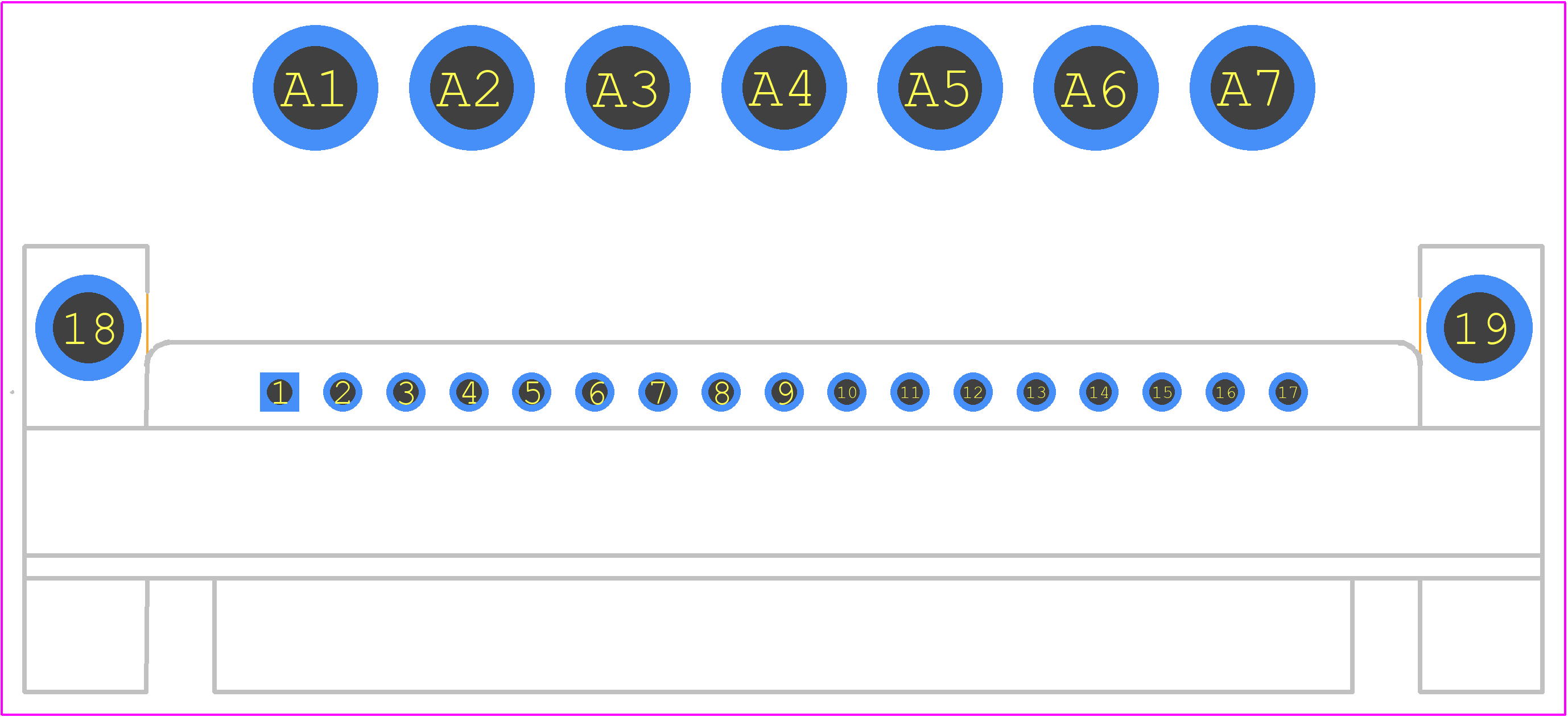

PCB Footprints

CBD24W7M57R6000 - Positronic PCB footprint - Other - Other - CBD24W7M57R6000-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CBD24W7M57R6000
Part Number CBD24W7M57R6000
Manufacturer Positronic
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - CBD24W7M57R6000-2
Released Date May 9, 2024
Last Modified Date May 9, 2024 9:32 AM UTC
Pinout / Pin List Click Here (Member Only)

CBD24W7M57R6000 Details

Manufacturer Part Number:
CBD24W7M57R6000
Manufacturer:
Amphenol Positronic

Trust Checks

Community Provided

System Verified

Community Approved

CBD24W7M57R6000 Overview

Use the download button to access the CBD24W7M57R6000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CBD24, or try a keyword search, such as D Type Connectors
