CBP2-3050BN+ - Mini-Circuits

Description: Signal Conditioning Ceramic Resonator Band Pass Filter

Download CBP2-3050BN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

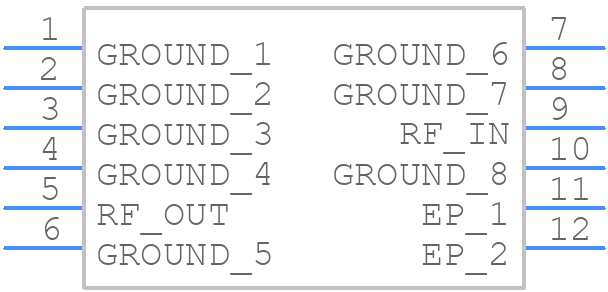

Symbol
CBP2-3050BN+ - Mini-Circuits - PCB symbol
click to zoom

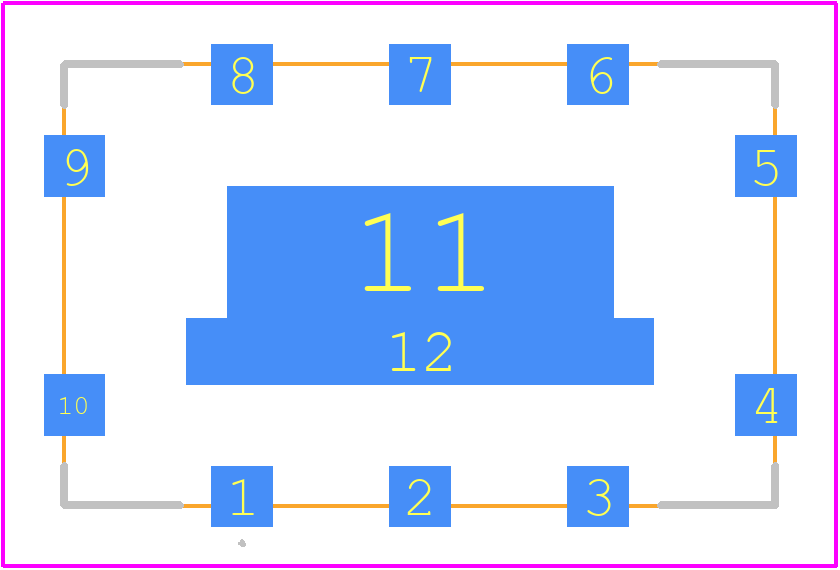

PCB Footprints
CBP2-3050BN+ - Mini-Circuits PCB footprint - Other - Other - CBP2-3050BN+
click to zoom
3D Models
CBP2-3050BN+ - Mini-Circuits - 3D model - Other - CBP2-3050BN+
click to zoom

CBP2-3050BN+ Details

  • Manufacturer Part Number:

    CBP2-3050BN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.14

  • Average Input Power:

    6 W

  • Center or Cutoff Frequency (fo/fc):

    3050 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    3.05 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    17.78 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Width:

    11.05 mm

CBP2-3050BN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The CBP2-3050BN+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
  • The maximum power handling of the CBP2-3050BN+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The CBP2-3050BN+ is rated for operation up to 85°C. While it can tolerate high temperatures, it's essential to derate the power handling and ensure proper heat sinking to prevent thermal runaway and maintain reliability.
  • Common issues with the CBP2-3050BN+ include poor return loss, high insertion loss, and overheating. To troubleshoot, check the PCB layout, impedance matching, and power handling. Also, ensure that the device is properly soldered and that there are no signs of physical damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBP2-3050BN+ Overview

Use the download button to access the CBP2-3050BN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBP2-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
