Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the CBS504824 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure reliability, Cosel recommends derating the module's output power by 2.5% per degree Celsius above 40°C. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to improve heat dissipation.
Cosel recommends using a fuse with a rating of 5A to 10A, depending on the specific application and input voltage. The fuse should be able to handle the module's peak inrush current and provide adequate protection against overcurrent conditions.
Yes, it is possible to parallel multiple CBS504824 modules to increase output power. However, it's essential to ensure that the modules are identical, and the output voltages are matched within 1% to prevent uneven current sharing. Additionally, a master-slave configuration or active current sharing is recommended to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CBS504824 Overview

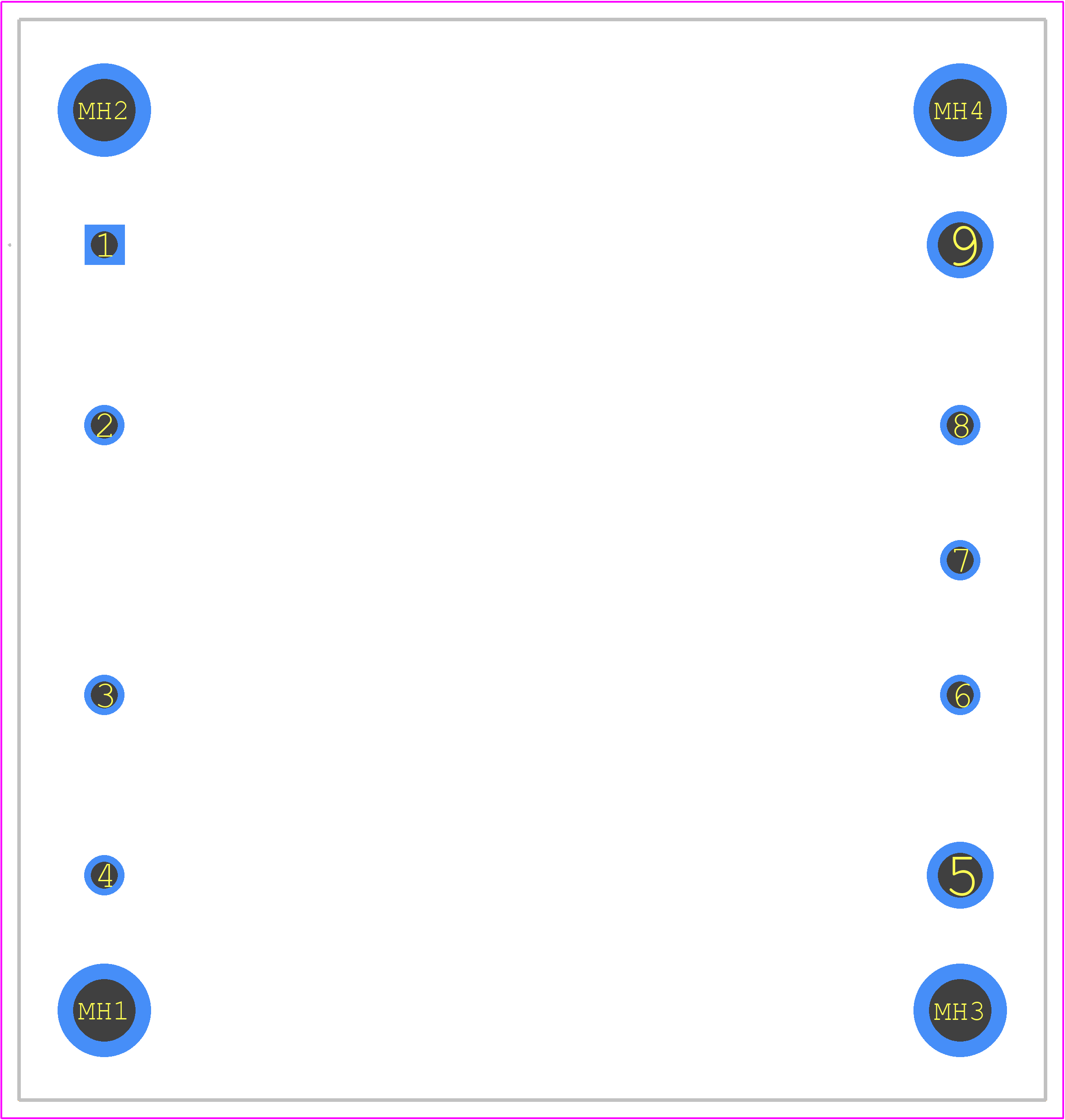

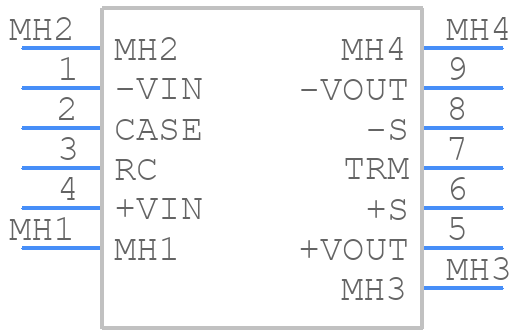

Use the download button to access the CBS504824 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBS50,
or try a keyword search, such as Power Supply Modules
