CBTL01023GM,115 - NXP

Description: Multiplexer Switch ICs single diff channel

Download CBTL01023GM,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

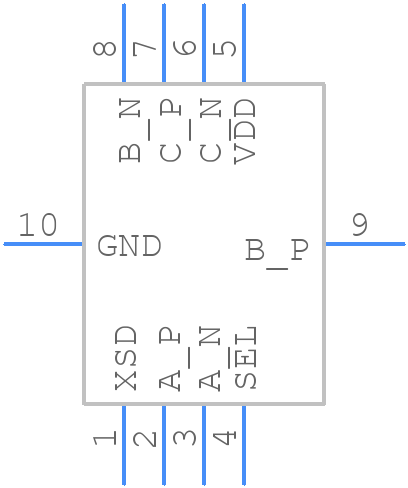

CBTL01023GM,115 - NXP - PCB symbol
click to zoom
PCB Footprints
CBTL01023GM,115 - NXP PCB footprint - Other - Other - SOT1049-3
click to zoom
3D Models
CBTL01023GM,115 - NXP - 3D model - Other - SOT1049-3
click to zoom

CBTL01023GM,115 Details

  • Manufacturer Part Number:

    CBTL01023GM,115

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    XQFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    SOT1049-3

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • Family:

    CBT/FST/QS/5C/B

  • JESD-30 Code:

    R-PQCC-N10

  • Length:

    2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MULTIPLEXER AND DEMUX/DECODER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inputs:

    2

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XQCCN

  • Package Equivalence Code:

    LCC10,.06X.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    1.8 mA

  • Prop. Delay@Nom-Sup:

    300 ns

  • Propagation Delay (tpd):

    300 ns

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.55 mm

CBTL01023GM,115 Frequently Asked Questions (FAQs)

  • A good PCB layout for the CBTL01023GM,115 involves keeping the signal traces short and direct, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 50-ohm transmission line and to minimize vias and stubs.
  • To ensure signal integrity, use a controlled impedance PCB, maintain a consistent signal return path, and minimize signal reflections. Also, use a common mode filter or a common mode choke to reduce electromagnetic interference (EMI).
  • The CBTL01023GM,115 is designed to operate up to 3 GHz, but the actual operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to determine the optimal operating frequency for your specific use case.
  • The CBTL01023GM,115 has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended PCB layout and thermal design guidelines.
  • The CBTL01023GM,115 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients.
