CBTL08GP053EVY - NXP

Description: Analogue & Digital Crosspoint ICs USB High Performance Type-C Crossbar IC

Download CBTL08GP053EVY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

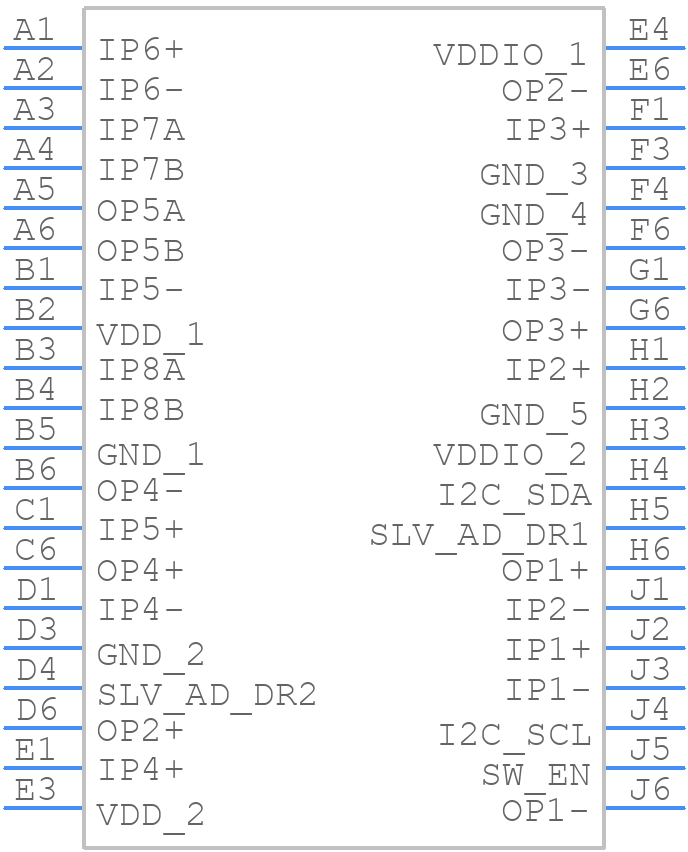

CBTL08GP053EVY - NXP - PCB symbol
click to zoom
PCB Footprints
CBTL08GP053EVY - NXP PCB footprint - BGA - BGA - CBTL08GP053EVY
click to zoom
3D Models
CBTL08GP053EVY - NXP - 3D model - BGA - CBTL08GP053EVY
click to zoom

CBTL08GP053EVY Details

  • Manufacturer Part Number:

    CBTL08GP053EVY

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFBGA-40

  • Manufacturer Package Code:

    SOT1439-1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PBGA-B40

  • JESD-609 Code:

    e1

  • Length:

    4.75 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.99 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.25 mm

CBTL08GP053EVY Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • Use controlled impedance traces, add series termination resistors, and consider using a common-mode filter to reduce EMI. Also, ensure the signal lines are well-decoupled and shielded.
  • The CBTL08GP053EVY is rated for operation from -40°C to 125°C. However, it's essential to consider the specific application and potential thermal gradients when designing the system.
  • Yes, the CBTL08GP053EVY is designed for high-speed applications up to 32 Gbps. However, it's crucial to carefully evaluate the signal integrity, PCB layout, and termination schemes to ensure reliable operation at high speeds.
  • Ensure a controlled power-up sequence, and use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the device. Add decoupling capacitors close to the device to filter out noise and reduce voltage droop.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBTL08GP053EVY Overview

Use the download button to access the CBTL08GP053EVY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBTL0, or try a keyword search, such as Other Consumer ICs
