CC10-2412DF-E footprint, schematic symbol and 3D model by TDK Lambda

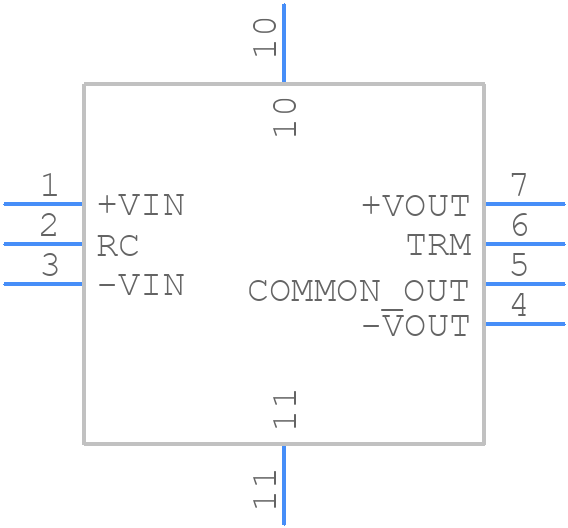

Symbol

click to zoom

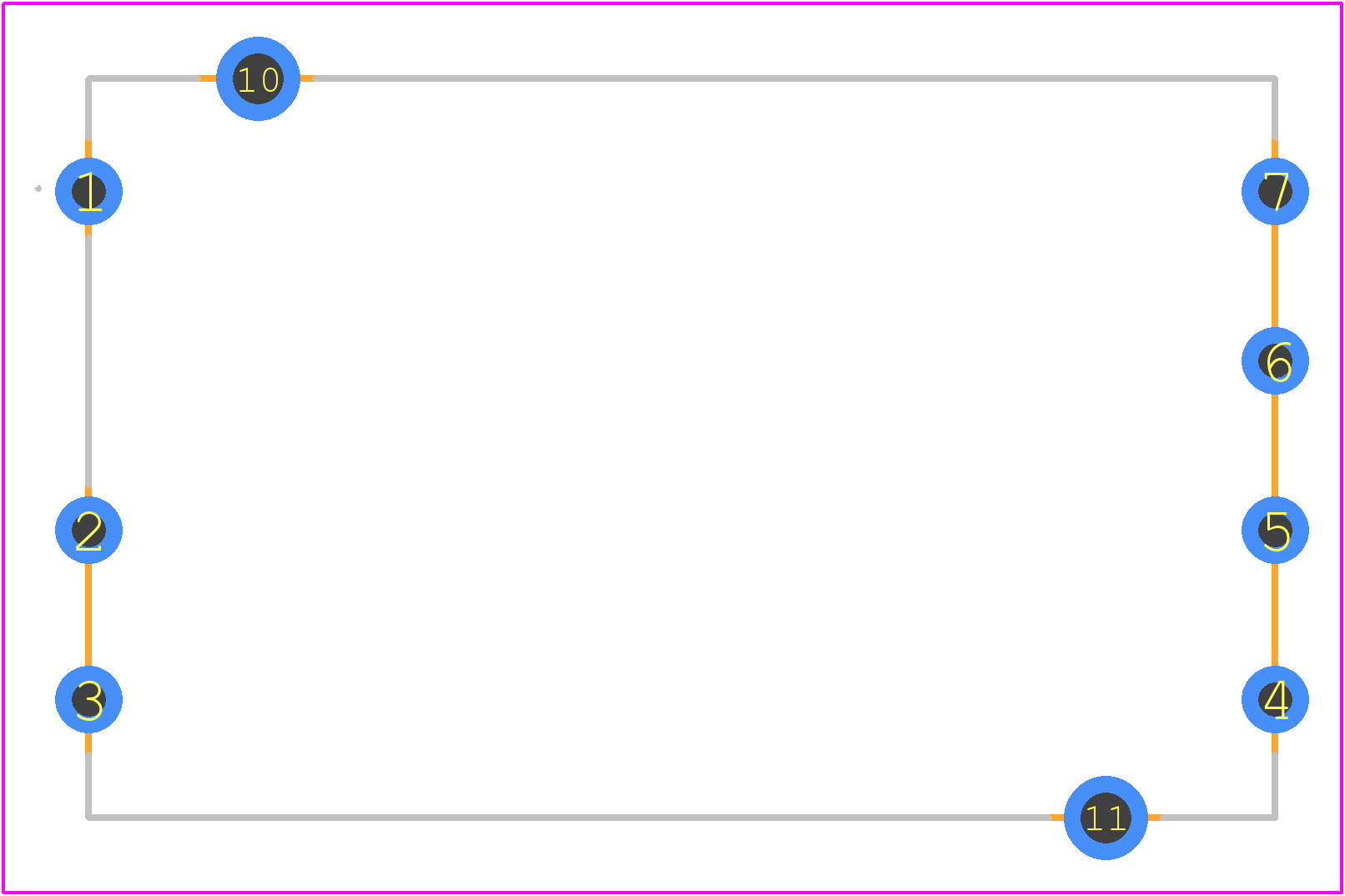

PCB Footprints

CC10-2412DF-E - TDK Lambda PCB footprint - Other - Other - CC10-0512DF-E

click to zoom

3D Models

CC10-2412DF-E - TDK Lambda - 3D model - Other - CC10-0512DF-E

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CC10-2412DF-E
Part Number CC10-2412DF-E
Manufacturer TDK Lambda
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - CC10-0512DF-E
Released Date Apr 20, 2018
Last Modified Date Aug 1, 2024 9:27 AM UTC
Pinout / Pin List Click Here (Member Only)

CC10-2412DF-E Details

Manufacturer Part Number:
CC10-2412DF-E
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
DIP-7
ECCN Code:
EAR99
Manufacturer:
TDK-Lambda Corporation
Additional Feature:
ADDITIONAL -12V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-MDMA-T7
Length:
35.56 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
7
Operating Temperature-Max:
50 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.45 A
Output Voltage-Max:
15 V
Output Voltage-Min:
11.4 V
Output Voltage-Nom:
12 V
Package Body Material:
METAL
Package Code:
DIP
Package Equivalence Code:
DIP7/8,1.4,200
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
5.08 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
YES
Width:
22.6 mm

CC10-2412DF-E Frequently Asked Questions (FAQs)

The recommended input fuse rating is 2A slow-blow type, but it may vary depending on the specific application and environmental conditions. It's recommended to consult with a qualified engineer or the manufacturer for specific guidance.
The CC10-2412DF-E is rated for operation up to 71°C (160°F) ambient temperature, but derating may be required for higher temperatures. It's recommended to consult the datasheet and application notes for specific guidance on thermal management and derating.
The CC10-2412DF-E has a wide input voltage range of 9-36VDC, but it's recommended to verify the specific input voltage range required for your application and ensure it falls within the recommended range.
The typical efficiency of the CC10-2412DF-E is around 85-90%, depending on the input voltage and output load. However, the actual efficiency may vary depending on the specific application and operating conditions.
Yes, the CC10-2412DF-E can be paralleled for higher output current, but it's recommended to consult the manufacturer's application notes and follow specific guidelines for paralleling to ensure reliable operation and avoid potential issues.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CC10-2412DF-E Overview

Use the download button to access the CC10-2412DF-E schematic symbol, PCB footprint, and 3D model.
