TDK-Lambda recommends a PCB layout with a solid copper ground plane and a minimum of 2 oz copper thickness to ensure optimal thermal performance. Additionally, keeping the DC input and output connectors away from each other and using a star-point connection for the input capacitors can help reduce noise and improve efficiency.
To ensure reliable start-up and shutdown, it's recommended to add a soft-start circuit to limit the inrush current and prevent voltage overshoot. Additionally, a delay circuit can be added to the enable pin to ensure the converter is fully enabled before applying the input voltage.
The maximum allowable capacitance for the output filter capacitors is 10uF to 22uF, depending on the specific application and output voltage. Exceeding this value may cause instability or oscillation in the converter.
The CC10-4812DF-E is rated for operation up to 85°C ambient temperature, but derating is required above 70°C. For high-temperature applications, consider using a heat sink or forced air cooling to maintain a safe operating temperature.
To troubleshoot common issues, check the input voltage, output load, and PCB layout for any anomalies. Verify that the recommended component values and layout guidelines are followed. Use an oscilloscope to measure the output voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC10-4812DF-E Overview

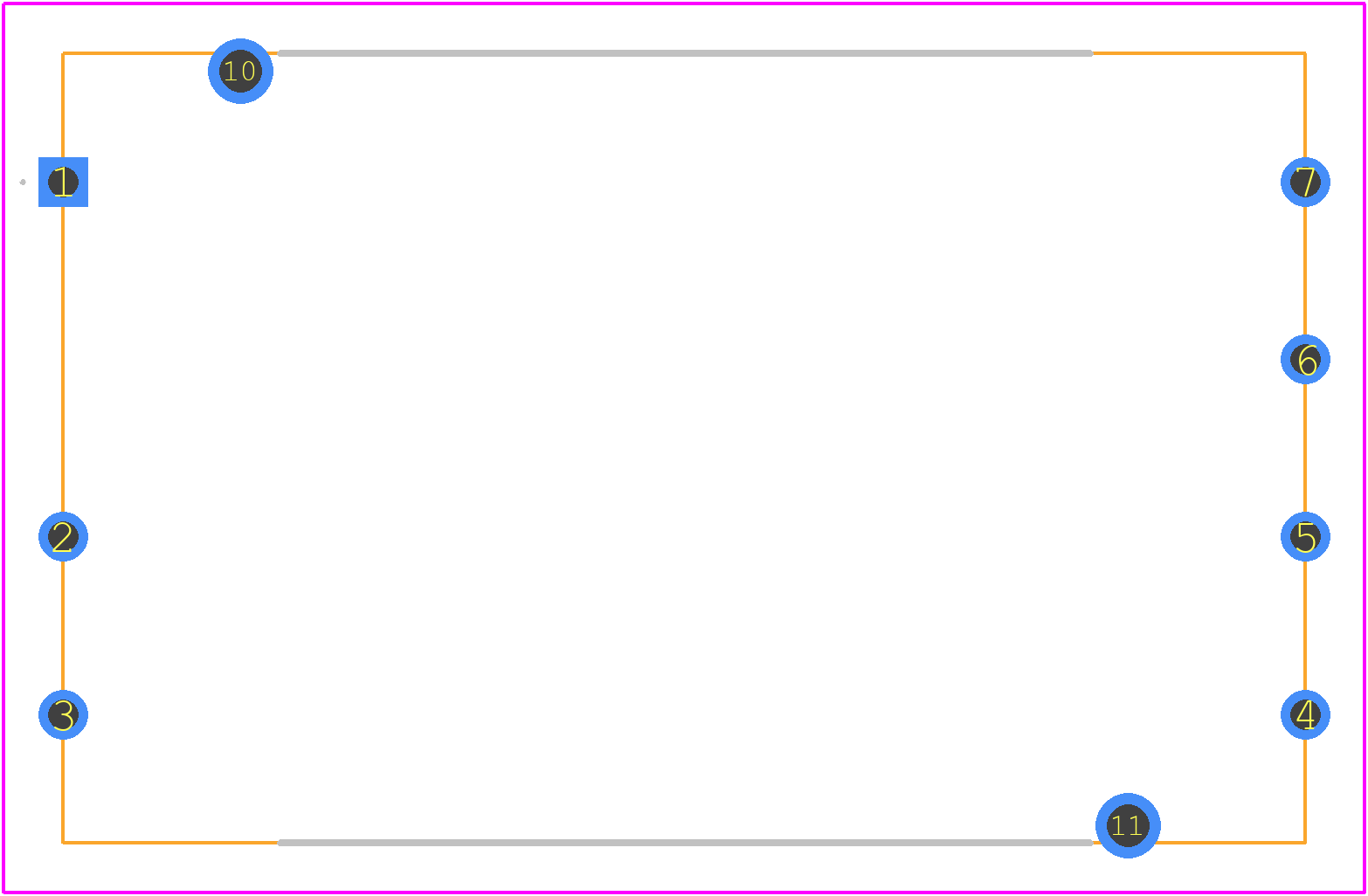

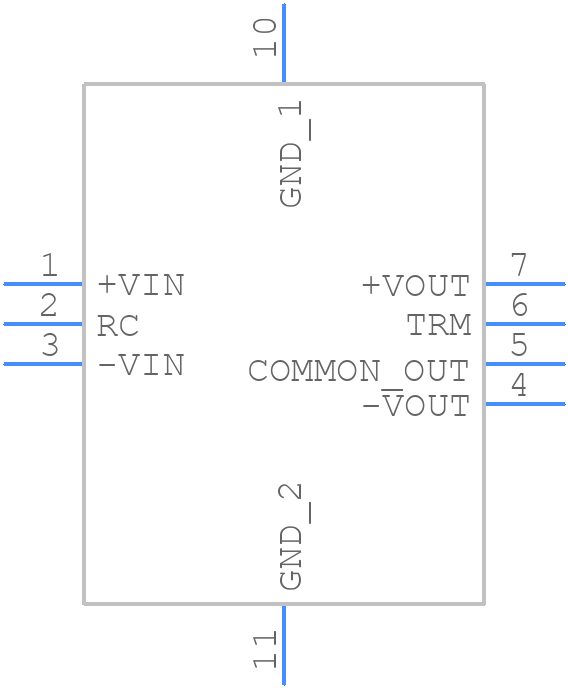

Use the download button to access the CC10-4812DF-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC10-,
or try a keyword search, such as Power Supply Modules
