Texas Instruments provides a recommended PCB layout in the CC1100ERGPT datasheet, but it's also important to follow general RF design guidelines, such as keeping the RF signal path as short as possible, using a solid ground plane, and avoiding vias under the RF components.
Optimizing the CC1100ERGPT's performance requires understanding the specific requirements of your application, such as frequency, data rate, and range. TI provides a range of application notes and design guides that can help you optimize the device's performance for your specific use case.
The maximum transmission power of the CC1100ERGPT is +10 dBm, but this can be adjusted using the device's programmable output power feature. However, it's important to ensure that the transmission power complies with regulatory requirements and does not exceed the maximum allowed power in your region.
The CC1100ERGPT supports frequency hopping, which can be implemented using the device's built-in frequency synthesizer and the MCU's software. TI provides example code and application notes that demonstrate how to implement frequency hopping with the CC1100ERGPT.
The CC1100ERGPT is a robust device that can operate over a wide range of temperatures (-40°C to +85°C) and voltage variations (2.1 V to 3.6 V). However, its performance may vary slightly with temperature and voltage changes. TI provides detailed information on the device's temperature and voltage characteristics in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC1100ERGPT Overview

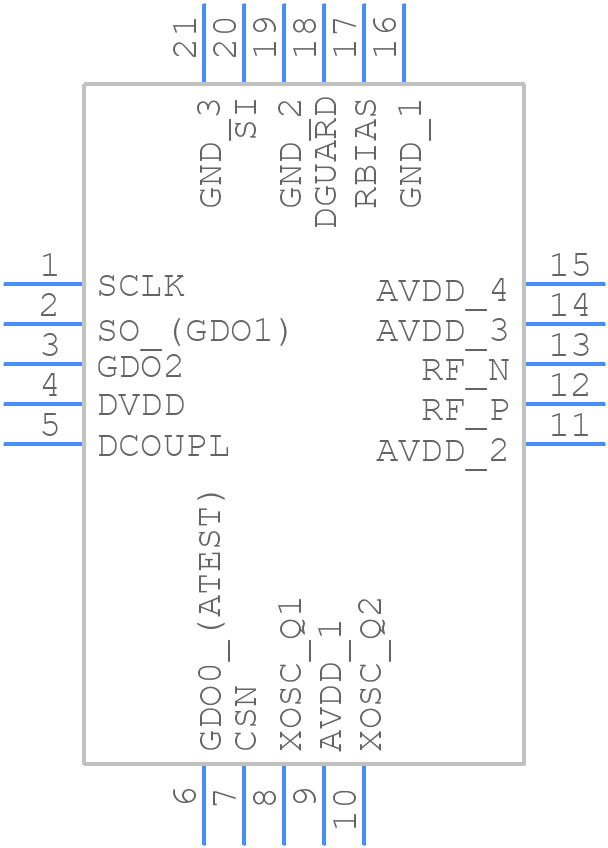

Use the download button to access the CC1100ERGPT schematic symbol, PCB footprint, and 3D model.
