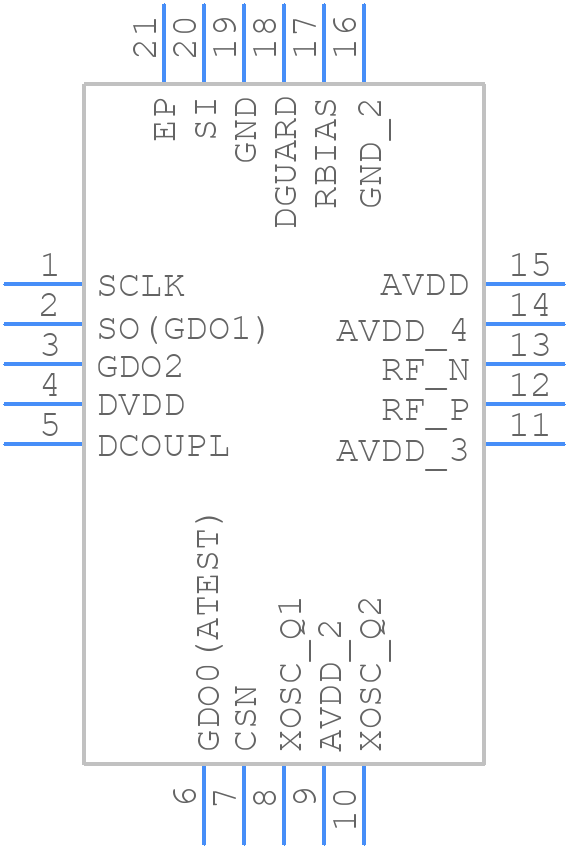

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CC1100ERTKR
- Part Number CC1100ERTKR
- Manufacturer Texas Instruments
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P400X400X90-21N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
CC1100ERTKR Details
-
Manufacturer Part Number:
CC1100ERTKR
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
4 X 4 MM, GREEN, QFN-20
-
Pin Count:
20
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
JESD-30 Code:
S-PQCC-N20
CC1100ERTKR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the CC1100ERTKR datasheet, but it's also important to follow general RF design guidelines, such as keeping the RF signal path as short as possible, using a solid ground plane, and avoiding vias under the RF components.
-
Optimizing the CC1100ERTKR's performance requires understanding the specific requirements of your application, such as frequency, data rate, and range. TI provides a range of application notes and design guides that can help you optimize the device's performance for your specific use case.
-
The maximum transmission power of the CC1100ERTKR is +10 dBm, but this can be adjusted using the device's programmable output power feature. However, it's important to ensure that the transmission power complies with regulatory requirements in your region.
-
The CC1100ERTKR supports frequency hopping, which can be implemented using the device's built-in frequency synthesizer and the MCU's software. TI provides example code and application notes to help you implement frequency hopping in your design.
-
The CC1100ERTKR is a robust device that can operate over a wide range of temperatures (-40°C to +85°C) and voltage variations (2.1 V to 3.6 V). However, it's still important to consider the device's operating conditions and ensure that it is properly decoupled and bypassed to minimize the effects of temperature and voltage variations.
Trust Checks
System Verified
CC1100ERTKR Overview
Use the download button to access the CC1100ERTKR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CC110,
or try a keyword search, such as Cellular Telephone Circuits
