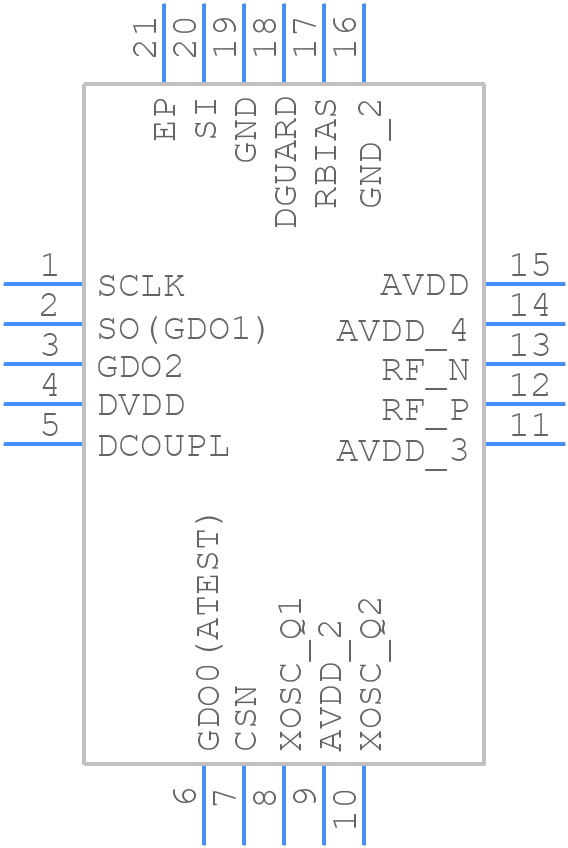

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CC1100ERTKT
- Part Number CC1100ERTKT
- Manufacturer Texas Instruments
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P400X400X90-21N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
CC1100ERTKT Details
-
Manufacturer Part Number:
CC1100ERTKT
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
4 X 4 MM, GREEN, QFN-20
-
Pin Count:
20
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
JESD-30 Code:
S-PQCC-N20
CC1100ERTKT Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the CC1100ERTKT datasheet, but it's also recommended to follow the guidelines in the 'CC1100 PCB Layout Guidelines' application note (SWRA122) for optimal performance.
-
Optimizing the CC1100ERTKT's performance requires a deep understanding of the device's registers and settings. TI provides a 'CC1100 Optimizer' tool that helps engineers optimize the device's settings for their specific application. Additionally, the 'CC1100 Optimizer User's Guide' (SWRU185) provides detailed information on how to use the tool.
-
The maximum transmission power of the CC1100ERTKT is +10 dBm, but it can be adjusted using the PATABLE register. However, it's essential to ensure that the transmission power complies with the relevant regulatory requirements for your region.
-
Frequency hopping can be implemented using the CC1100ERTKT's built-in frequency synthesizer and the FHSS (Frequency Hopping Spread Spectrum) mode. TI provides an 'FHSS Implementation with the CC1100' application note (SWRA123) that provides detailed information on how to implement frequency hopping with the device.
-
The CC1100ERTKT's sensitivity is typically around -105 dBm, but it can be improved by optimizing the device's settings, using an external LNA (Low Noise Amplifier), and ensuring a good PCB layout. TI provides a 'CC1100 Receiver Sensitivity' application note (SWRA124) that provides detailed information on how to improve the device's sensitivity.
Trust Checks
System Verified
CC1100ERTKT Overview
Use the download button to access the CC1100ERTKT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CC110,
or try a keyword search, such as Cellular Telephone Circuits
