CC1101RTK - Texas Instruments

Description: Low-Power Sub-1 GHz RF Transceiver

Download CC1101RTK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

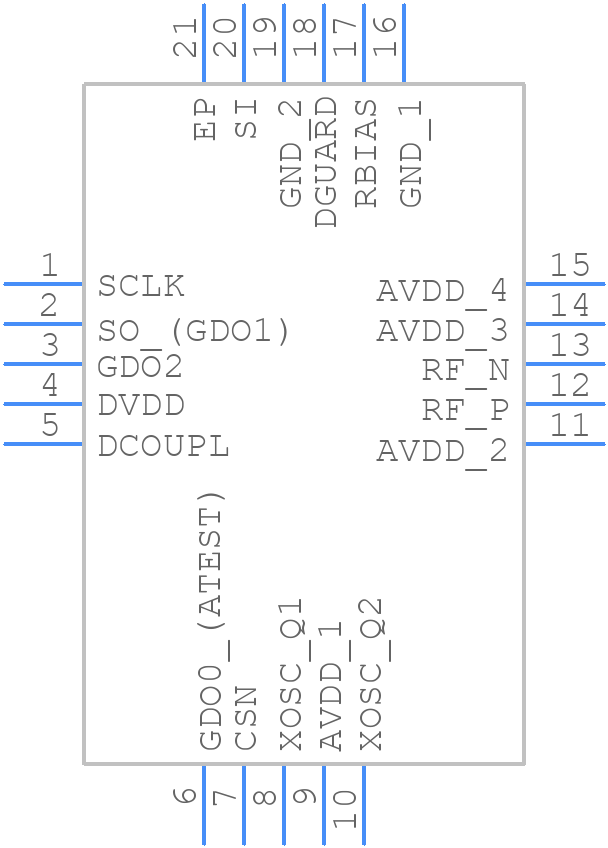

CC1101RTK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1101RTK - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - rgp
click to zoom
3D Models
CC1101RTK - Texas Instruments - 3D model - Quad Flat No-Lead - rgp
click to zoom

CC1101RTK Details

  • Manufacturer Part Number:

    CC1101RTK

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, GREEN, PLASTIC, QLP-20

  • Pin Count:

    20

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

CC1101RTK Frequently Asked Questions (FAQs)

  • A good PCB layout for the CC1101RTK involves keeping the RF signal path as short as possible, using a solid ground plane, and placing the device near the antenna. TI provides a recommended layout in the CC1101RTK datasheet and application notes.
  • Optimizing the CC1101RTK's performance involves selecting the right frequency, modulation scheme, and data rate for your application. You can use TI's SmartRF Studio software to simulate and optimize the performance of the CC1101RTK for your specific use case.
  • The maximum transmission power of the CC1101RTK is +10 dBm, but this can be adjusted using the PATABLE register. However, the actual transmission power may vary depending on the antenna and PCB design.
  • The CC1101RTK supports frequency hopping through its built-in frequency synthesizer. You can implement frequency hopping by programming the device to switch between different frequencies using the FSCTRL1 and FSCTRL0 registers.
  • The CC1101RTK does not have built-in encryption, but you can implement encryption in software using a microcontroller or a dedicated encryption IC. TI recommends using AES encryption with a secure key exchange protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC1101RTK Overview

Use the download button to access the CC1101RTK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC110, or try a keyword search, such as Cellular Telephone Circuits
