CC110LRGPR - Texas Instruments

Description: Value Line Sub-1 GHz Transceiver

Download CC110LRGPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

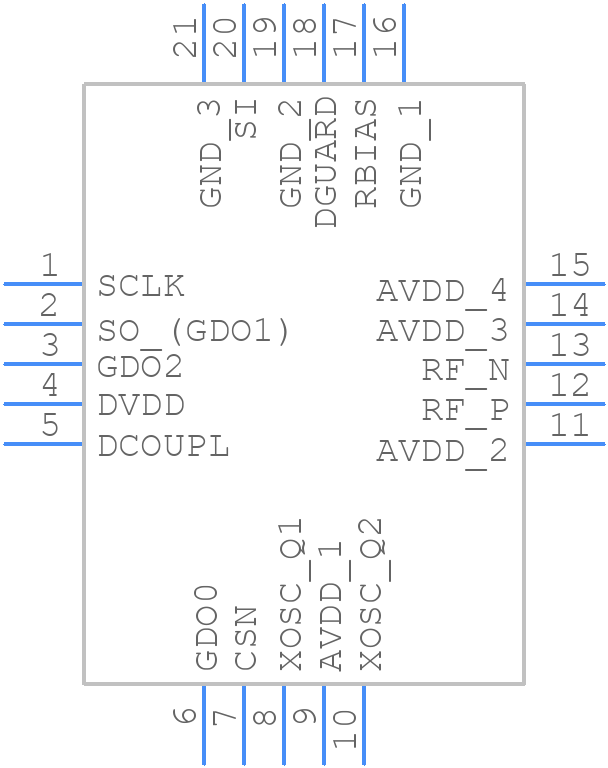

CC110LRGPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC110LRGPR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom
3D Models
CC110LRGPR - Texas Instruments - 3D model - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom

CC110LRGPR Details

  • Manufacturer Part Number:

    CC110LRGPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    600 Mbps

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

CC110LRGPR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the RF signal is recommended. The CC110LRGPR should be placed near the antenna, and the antenna should be matched to 50 ohms. A good layout will help minimize noise and ensure optimal performance.
  • Transmission power can be optimized by adjusting the PATABLE register. The PATABLE register controls the output power of the transmitter. The optimal setting will depend on the specific application and environment. It's recommended to experiment with different settings to find the optimal balance between range and power consumption.
  • Frequency hopping can be implemented using the CC110LRGPR's built-in frequency synthesizer. The synthesizer can be programmed to hop between different frequencies using the FSCTRL1 and FSCTRL0 registers. The hopping sequence can be controlled using a microcontroller or a dedicated frequency hopping controller.
  • Reliable data transmission can be ensured by implementing error correction mechanisms such as CRC and FEC. The CC110LRGPR supports various modulation schemes and data rates, which can be adjusted based on the specific application requirements. Additionally, using a robust protocol such as IEEE 802.15.4 can help ensure reliable data transmission.
  • The recommended antenna design for the CC110LRGPR is a quarter-wavelength monopole antenna or a dipole antenna. The antenna should be matched to 50 ohms and have a return loss of less than -10 dB. The antenna design should also take into account the operating frequency and the environment in which the device will be used.
