Part Image

CC110LRGPT - Texas Instruments

Description: Value Line Sub-1 GHz Transceiver

Download CC110LRGPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

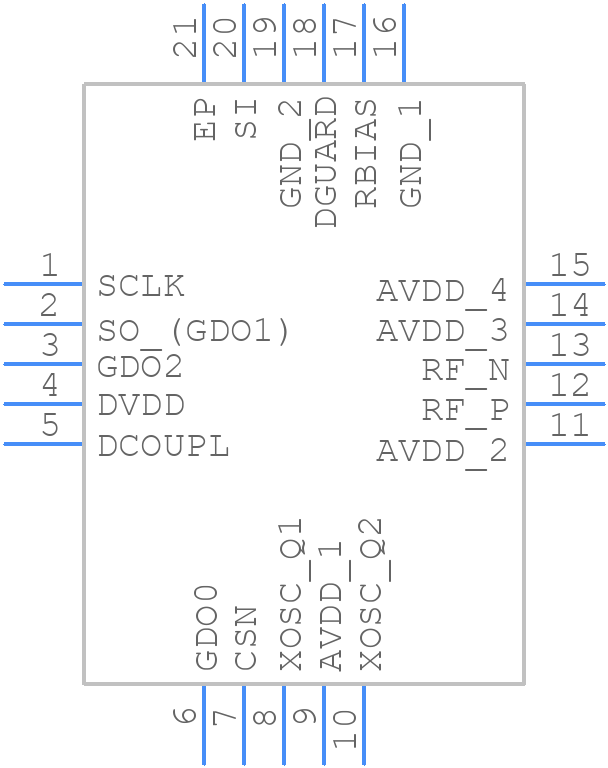

CC110LRGPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC110LRGPT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom
3D Models
CC110LRGPT - Texas Instruments - 3D model - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom

CC110LRGPT Details

  • Manufacturer Part Number:

    CC110LRGPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    600 Mbps

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

CC110LRGPT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the RF signal is recommended. Keep the RF signal path as short as possible and avoid vias under the RF components.
  • Adjust the PATABLE register to set the transmission power. A higher value increases the transmission power, but be careful not to exceed the maximum allowed power in your region.
  • Use the FHSS (Frequency Hopping Spread Spectrum) mode and configure the frequency hopping sequence using the FHSS_CFG register. Ensure that the frequency hopping sequence is synchronized between transmitter and receiver.
  • Check the receiver's input impedance, ensure proper antenna matching, and verify that the receiver is not saturated. Also, check for interference from other devices and ensure that the receiver is properly calibrated.
  • Yes, CC110LRGPT can be used with an external crystal oscillator. Connect the crystal oscillator to the XOSC_Q1 and XOSC_Q2 pins, and configure the XOSC register accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC110LRGPT Overview

Use the download button to access the CC110LRGPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC110, or try a keyword search, such as Cellular Telephone Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
