CC1110F32RSP footprint, schematic symbol and 3D model by Texas Instruments

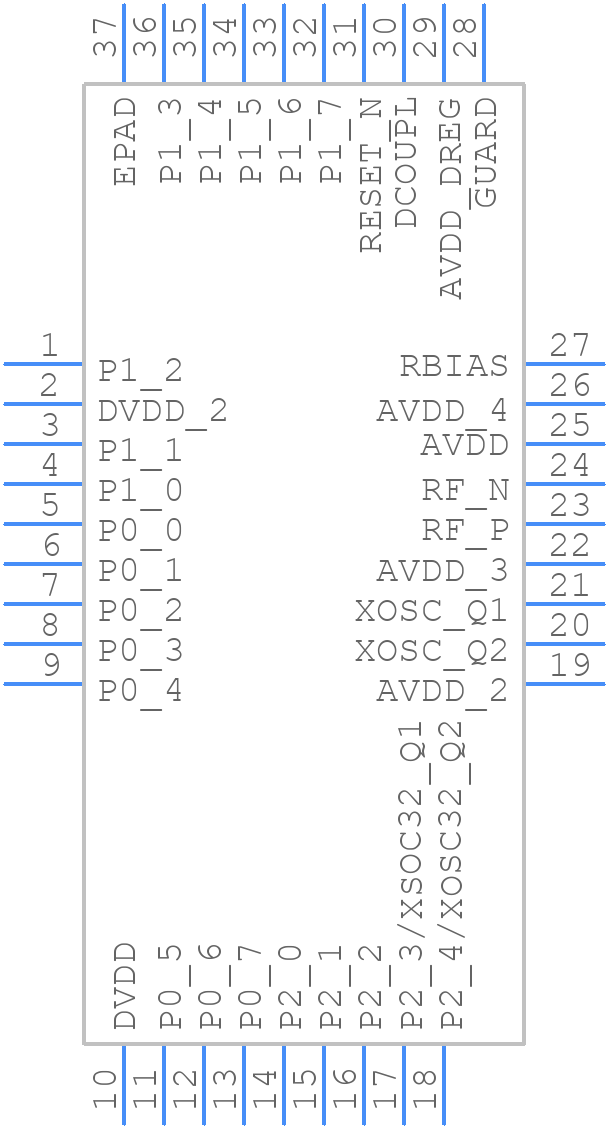

Symbol

click to zoom

PCB Footprints

CC1110F32RSP - Texas Instruments PCB footprint - Other - Other - QFN50P600X600X90-37N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CC1110F32RSP
Part Number CC1110F32RSP
Manufacturer Texas Instruments
Pin Count 37
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN50P600X600X90-37N
Released Date Jan 12, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

CC1110F32RSP Details

Manufacturer Part Number:
CC1110F32RSP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
QFN
Package Description:
QFN-36
Pin Count:
36
HTS Code:
8542.31.00.30
Manufacturer:
Texas Instruments
YTEOL:
0
JESD-30 Code:
S-PQCC-N36
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Terminals:
36
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC36,.25SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.9 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
6 mm
uPs/uCs/Peripheral ICs Type:
RFSOC

CC1110F32RSP Frequently Asked Questions (FAQs)

The maximum transmission power of the CC1110F32RSP is +10 dBm (10 mW) in the 868/915 MHz frequency band.
To configure the CC1110F32RSP for optimal performance, you need to consider factors such as data rate, modulation scheme, and transmission power. TI provides a range of application notes and software development kits (SDKs) to help you optimize the device for your specific use case.
The CC1110F32RSP supports data rates up to 500 kbps in the 868/915 MHz frequency band.
The CC1110F32RSP supports FHSS, which can be implemented using the device's built-in frequency synthesizer and the TI-provided software development kit (SDK). You can configure the device to hop between different frequencies using the SDK's API.
The power consumption of the CC1110F32RSP varies depending on the operating mode. In transmit mode, the current consumption is typically around 30 mA at +10 dBm output power. In receive mode, the current consumption is around 15 mA. In sleep mode, the current consumption is typically around 1 μA.

Trust Checks

System Verified

CC1110F32RSP Overview

Use the download button to access the CC1110F32RSP schematic symbol and PCB footprint.
