CC1120RHBR - Texas Instruments

Description: High performance Sub-1 GHz Transceiver for Narrowband Systems

Download CC1120RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

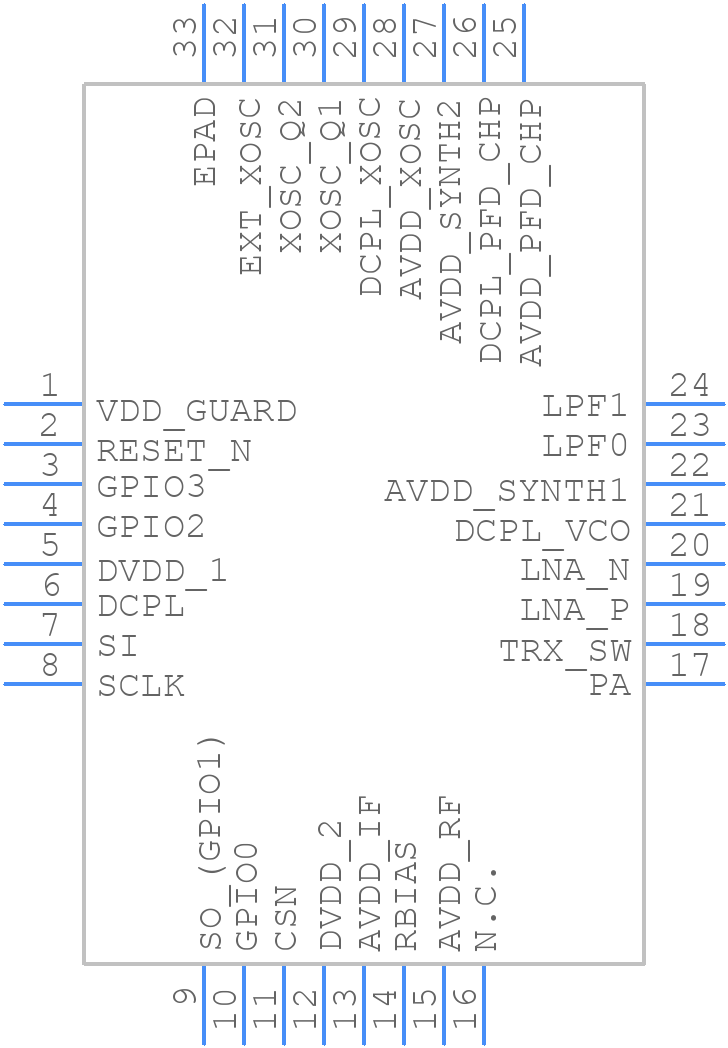

CC1120RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1120RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
CC1120RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

CC1120RHBR Details

  • Manufacturer Part Number:

    CC1120RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    200 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

CC1120RHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CC1120RHBR datasheet, but it's also recommended to follow the guidelines in the TI application note 'CC1120 PCB Layout Guidelines' (SWRA419) for optimal performance.
  • TI provides a range of application notes and design guides that can help optimize the CC1120RHBR's performance for specific applications, such as wireless sensor networks or industrial automation. Consult the TI website for relevant resources.
  • The maximum transmission power of the CC1120RHBR is +14 dBm, but this can be adjusted using the device's programmable output power feature.
  • Frequency hopping can be implemented using the CC1120RHBR's built-in frequency synthesizer and the device's programmable frequency hopping feature. Consult the CC1120RHBR datasheet and application notes for more information.
  • The CC1120RHBR's sensitivity is -121 dBm at 868 MHz and -119 dBm at 915 MHz, and its selectivity is 35 dB at 868 MHz and 33 dB at 915 MHz. These values can be affected by the device's configuration and the surrounding environment.
