CC1120RHBT - Texas Instruments

Description: High performance Sub-1 GHz Transceiver for Narrowband Systems

Download CC1120RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

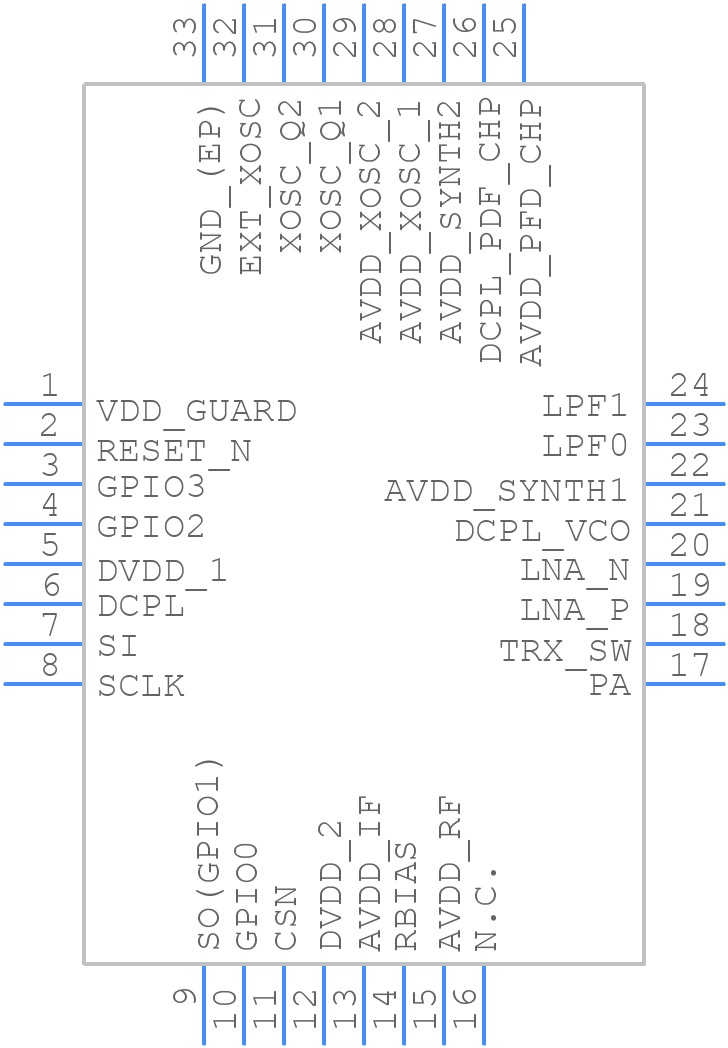

CC1120RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1120RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom
3D Models
CC1120RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom

CC1120RHBT Details

  • Manufacturer Part Number:

    CC1120RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    200 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

CC1120RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CC1120RHBT datasheet, but it's also recommended to follow the guidelines in the TI application note 'CC1120 PCB Layout Guidelines' (SWRA419) for optimal performance.
  • TI provides a range of application notes and design guides that can help optimize the CC1120RHBT's performance for specific applications, such as wireless sensor networks or industrial automation. Consult the TI website for relevant resources.
  • The CC1120RHBT requires a well-designed antenna to achieve optimal performance. Key considerations include antenna type, size, and placement, as well as impedance matching and tuning. TI provides guidance on antenna design in the CC1120RHBT datasheet and application notes.
  • TI provides a range of troubleshooting resources, including application notes and FAQs, to help identify and resolve common issues with the CC1120RHBT. Consult the TI website for relevant resources.
  • The CC1120RHBT has a maximum operating temperature of 85°C. To ensure reliable operation in high-temperature environments, follow the thermal design guidelines in the CC1120RHBT datasheet and application notes, and consider using thermal management techniques such as heat sinks or thermal interfaces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC1120RHBT Overview

Use the download button to access the CC1120RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC112, or try a keyword search, such as Other Telecom ICs
