The CC1150RGVR requires a 50-ohm antenna impedance matching network. A quarter-wavelength monopole antenna or a dipole antenna with a balun transformer is recommended. The antenna should be designed to operate at the desired frequency band (e.g., 868 MHz or 915 MHz).
The transmission power and data rate can be optimized by adjusting the PA_BOOST and PA_DRIVE settings. For example, increasing the PA_BOOST setting can increase the transmission power, while decreasing the data rate can improve the link budget. However, this may also increase the current consumption.
The recommended crystal oscillator frequency is 26 MHz, and the tolerance should be ±20 ppm to ensure reliable operation. A higher tolerance may affect the frequency accuracy and stability.
The CC1150RGVR supports FHSS through its built-in frequency synthesizer. To implement FHSS, configure the synthesizer to hop between different frequencies using the FHSS mode. The frequency hopping sequence and dwell time can be programmed using the device's registers.
The maximum transmission distance achievable with the CC1150RGVR depends on various factors, including the transmission power, antenna gain, and operating frequency. In general, the device can achieve a transmission distance of up to 10 km (6.2 miles) in ideal conditions, but this can be affected by obstacles, interference, and other environmental factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC1150RGVR Overview

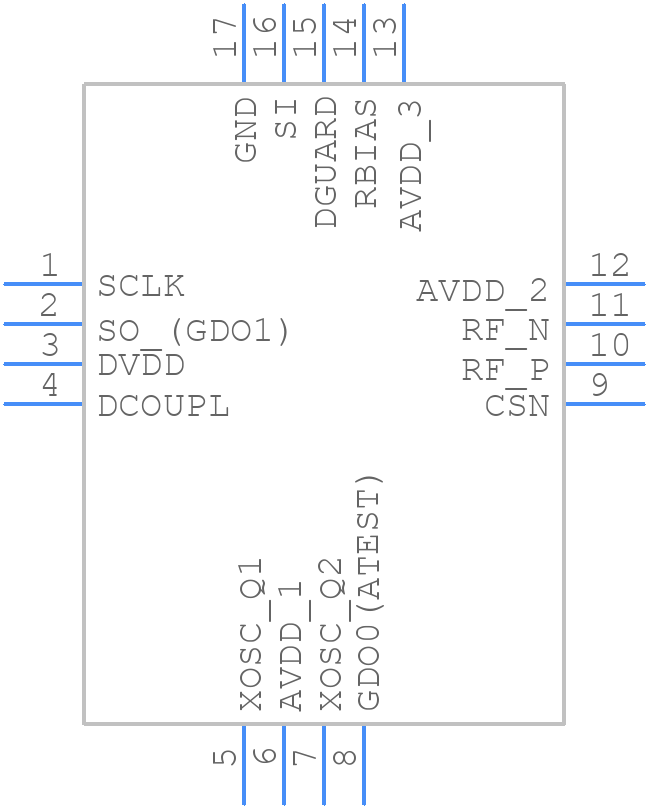

Use the download button to access the CC1150RGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC115,
or try a keyword search, such as Cellular Telephone Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
