CC1150RGVT - Texas Instruments

Description: Highly Integrated Multichannel RF Transmitter Designed for Low-Power Wireless Applications

Download CC1150RGVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

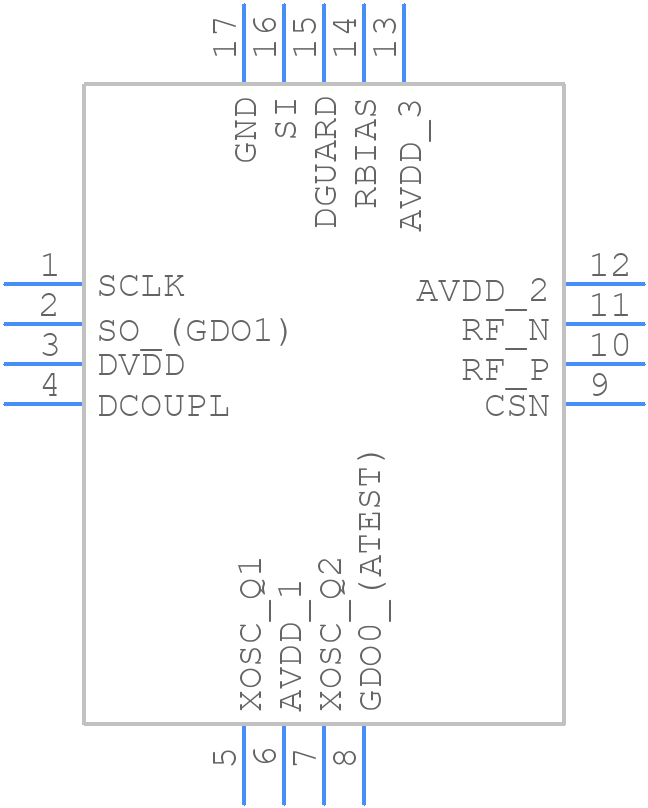

CC1150RGVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1150RGVT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)-2021
click to zoom

CC1150RGVT Details

  • Manufacturer Part Number:

    CC1150RGVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    500 Mbps

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

CC1150RGVT Frequently Asked Questions (FAQs)

  • The CC1150RGVT requires a 50-ohm antenna impedance matching network. A quarter-wavelength monopole antenna or a dipole antenna with a balun transformer is recommended. The antenna should be designed to operate at the desired frequency band (e.g., 868 MHz or 915 MHz).
  • The transmission power and data rate can be optimized by adjusting the PA_BOOST and PA_DRIVE settings. A higher PA_BOOST setting increases the transmission power, while a higher PA_DRIVE setting increases the data rate. However, increasing the transmission power and data rate also increases the current consumption and reduces the receiver sensitivity.
  • The recommended crystal oscillator frequency is 26 MHz, and the tolerance should be ±20 ppm to ensure reliable operation and minimize frequency drift.
  • The CC1150RGVT supports FHSS by using the frequency synthesizer to hop between different channels. The frequency hopping sequence can be programmed using the FHSS_MODE and FHSS_STEP_SIZE registers. The device can hop between 16 different channels, and the hopping sequence can be customized using the FHSS_CHANNEL_MAP register.
  • The maximum transmission distance achievable with the CC1150RGVT depends on the transmission power, antenna design, and operating frequency. In ideal conditions, the device can achieve a transmission distance of up to 10 km (6.2 miles) at 868 MHz and up to 5 km (3.1 miles) at 915 MHz.
